CaseIH 7130

The CaseIH 7130 is a tractor produced by Caseih. It is equipped with a 504.5 ci 8.3 L engine. The rated power output is 172.57 hp 128.7 kW. Transmission: 18 forward and 4 reverse. Operating weight: 16280 to 17540 pounds.

Overview

	1987 - 1993 Magnum SeriesRow-Crop tractor
1987 - 1993
Magnum Series
Row-Crop tractor

Production
Manufacturer	CaseIH
Row-Crop tractor
Built in Racine, Wisconsin, USA
Original price was $73,200 in 1993

CaseIH 7130 Engine
CDC 8.3L 6-cyl diesel
Engine details ...

CaseIH 7130 Power
PTO (claimed)	170 hp 126.8 kW
Drawbar (tested)	155.35 hp 115.8 kW
PTO (tested)	179.10 hp 133.6 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Differential hydraulic wet disc brakes
Silent Guardian II Cab standard with air-conditioning. Optional radio/tape deck.

Capacity
Fuel	95 gal 359.6 L
Hydraulic system	50.5 gal 191.1 L

Hydraulics
Type	closed center pressure flow compensated (PFC)
Capacity	50.5 gal 191.1 L
Pressure	2600 psi 179.3 bar
Valves	2 to 4
Pump flow	22 gpm 83.3 lpm
Total flow	29 gpm 109.8 lpm

Tractor hitch
Rear Type	III/IIIN
Control	electronic lower link
Rear lift (at 24"/610mm)	9,300 lbs 4218 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	wet disc
Rear PTO Type	1000 (1.75)

Dimensions & Tires
Wheelbase	118.3 inches 300 cm
Weight	16280 to 17540 pounds
Front tire	14L-16.1
2WD Rear tire	18.4R42
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	110
Batteries	2
Battery CCA	950
Battery volts	12

References
Magnum published in 1987, by CaseIH
Magnum Serie 7100 published in 1990, by CaseIH

Engine

Engine Detail — 504.5 ci / 8.3 L Diesel

Manufacturer	CDC
Configuration	turbocharged diesel, 6-cylinder 12-valve, liquid-cooled vertical inline
Displacement	504.5 ci 8.3 L
Bore/Stroke	4.488x5.315 inches 114 x 135 mm
Cooling system	viscous fan
Air cleaner	dual paper elements
Pre-heating	ether starting aid
	block heater (optional)
	oil pan heater (optional)
Compression	16.5:1
Rated RPM	2200
Starter volts	12
Oil capacity	21 qts 19.9 L
Oil change	250 h
Coolant capacity	30 qts 28.4 L

CaseIH 7130 Engine

Transmission

Transmission options

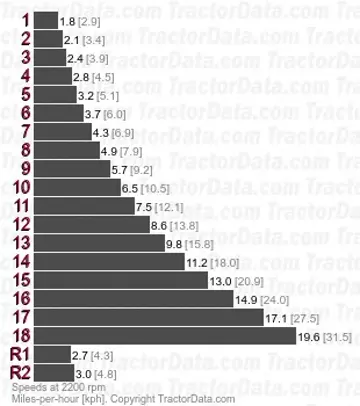

18-speed full power shift
24-speed powershift with creeper

Transmission — 18 forward and 2 reverse full power shift

Manufacturer	CaseIH
Type	full power shift
Gears	18 forward and 2 reverse
Clutch	hydraulic wet disc
Full-range power shift transmission operated with a single right-hand control lever.
With 18.4x42 rear tires.

Transmission — 24 forward and 3 reverse powershift with creeper

Manufacturer	CaseIH
Type	powershift with creeper
Gears	24 forward and 3 reverse
Clutch	hydraulic wet disc
The optional creeper range adds an additional six forward gears and one reverse to the Magnum power shift transmission.
With 18.4x42 rear tires.

Transmission — 18 forward and 4 reverse full power shift

Manufacturer	CaseIH
Type	full power shift
Gears	18 forward and 4 reverse
Clutch	hydraulic wet disc
Starting with the 1990 model year an additional two reverse gears were added to the Magnum power shift transmission.

Dimensions

CaseIH 7130 Tires
2WD Standard tires (ag)	Front: 14L-16.1. Rear: 18.4R42
4WD Standard tires (ag)	Front: 14.9R28. Rear: 18.4R42

Dimensions
Wheelbase	118.3 inches 300 cm
2WD Length	191.4 inches 486 cm
4WD Length	198.8 inches 504 cm
2WD Height (cab)	119.3 inches 303 cm
4WD Height (cab)	118.3 inches 300 cm
2WD Shipping weight	16,280 lbs 7384 kg
4WD Shipping weight	17,540 lbs 7956 kg
2WD Clearance (front axle)	22.8 inches 57 cm
4WD Clearance (front axle)	17.6 inches 44 cm
Clearance (drawbar)	16.6 inches 42 cm
Rear axle	4 by 114 inches 101 by 2895 mm
2WD Front tread	60 to 86 inches 152 to 218 cm
4WD Front tread	60 to 95 inches 152 to 241 cm
Rear tread	60 to 127 inches 152 to 322 cm

Tests

OCED Tractor Test 1611
Diesel 18-speed 4WD July 1988 - 1988, Link: OCED Tractor Test 1611 file
PTO performance
Max power	179.10 hp 133.6 kW
Fuel use	9.5 gal/hour 36.0 l/hour
Power at rated engine speed	172.57 hp 128.7 kW
Fuel use	9.7 gal/hour 36.7 l/hour
Drawbar performance
Max power	155.35 hp 115.8 kW
Fuel use	9.5 gal/hour 36.0 l/hour
Gear 9 used for power test.
Max pull	20926 lbs 9492 kg
Gear 5 used for pull test.

Photos

Two-wheel drive Case International 7130 at the production introduction.

Four-wheel drive Case International 7130.
