Massey Ferguson 10

The Massey Ferguson 10 is a tractor produced by Massey Ferguson Lawn Tractors. It is equipped with a 388 cc 23.7 ci engine. The listed engine power is Gasoline (listed): 10 hp / 7.5 kW. Transmission: 4 forward and 1 reverse.

Engine Power
Gasoline (listed): 10 hp / 7.5 kW
Fuel & Capacities
1.75 gal 6.6 L
Transmission
4 forward and 1 reverse

Overview

Massey Ferguson 10 tractor photo
1966 - 1976 Garden tractorAMF built Garden tractor AMF built
Production
Distributor
Massey Ferguson
Manufacturer
AMF
Garden tractor
Factories
Algoma, Wisconsin, USA
Des Moines, Iowa, USA
Massey Ferguson 10 Engine
10HP Tecumseh 388cc 1-cyl gasoline
Fuel tank
1.75 gal 6.6 L
Engine details ...
Massey Ferguson 10 Transmission
4-speed gear with variable-speed pulley
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.
Tractor hitch
Type
sleeve hitch (optional)
Dimensions & Tires
Wheelbase
44 inches 111 cm
Front tire
4.80x8.00
Rear tire
6.00x12.00
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
10 references literature
Lawn and Garden Tractors published in 1967, by Massey Ferguson
Lawn and Garden Tractors published in 1969, by Massey Ferguson
Lawn and Garden Equipment published in 1975, by Massey Ferguson
Complete Farm Machinery Guide published in 1976, by Massey Ferguson

Engine

Engine Detail — 388 cc / 23.7 ci Gasoline

Manufacturer
Tecumseh HH100
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled horizontal-shaft
Displacement
388 cc 23.7 ci
Bore/Stroke
3.3125x2.75 inches 84 x 70 mm
Power
10 hp 7.5 kW
Starter volts
12
Oil capacity
1.25 qts 1.2 L

Transmission

Transmission — 4 forward and 1 reverse belt-driven gear with variable-speed pulley

Type
belt-driven gear with variable-speed pulley
Gears
4 forward and 1 reverse
Oil capacity
2 qts 1.9 L
Right-hand variable speed control offers five shift-on-the-go speed ratios for each gear in in the transmission.

Dimensions

Massey Ferguson 10 Tires
Ag front
4.80x8.00
Ag rear
6.00x12.00
Lawn/turf front
4.80x8.00
Lawn/turf rear
6.00x12.00
Lawn/turf front
6.50x8.00
Lawn/turf rear
8.50x12.00
Dimensions
Wheelbase
44 inches 111 cm
Length
67 inches 170 cm
Width
35.5 inches 90 cm
Height (steering wheel)
41.75 inches 106 cm
Ground clearance
7 inches 17 cm

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Front-end loader
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.
42" Mower deck
Type
mid-mount Massey Ferguson
3-blade
Cutting width
42 inches 106 cm

Photos

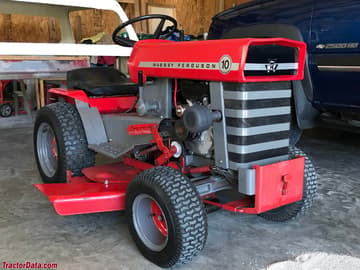

Massey Ferguson 10

Massey Ferguson 10

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson Lawn Tractors Massey Ferguson 10.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Massey Ferguson Lawn Tractors Massey Ferguson 10 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Massey Ferguson Lawn Tractors Massey Ferguson 10.

Converted Equivalents:

Horsepower (HP)10 hp
Kilowatts (kW)7.5 kW
Metric Horsepower (PS / CV)10.1 PS
