Massey Ferguson 8E Executive
The Massey Ferguson 8E Executive is a tractor produced by Massey Ferguson Lawn Tractors. The listed engine power is Gasoline (listed): 8 hp / 6.0 kW. Transmission: 3 forward and 1 reverse. Operating weight: 510 lbs 231 kg.
Engine Power
Gasoline (listed): 8 hp / 6.0 kW
Fuel & Capacities
1.7 gal
6.4 L
Transmission
3 forward and 1 reverse
Operating Weight
510 lbs
231 kg
Overview
 | 1964 - 1966
Garden tractorDura built
Garden tractor
Dura built |
|---|
Production | |
|---|---|
Distributor | Massey Ferguson |
Manufacturer | Dura |
Garden tractor | |
Built in Richmond, Indiana, USA | |
Massey Ferguson 8E Engine | |
|---|---|
8HP Kohler 1-cyl gasoline | |
Fuel tank | 1.7 gal
6.4 L |
Engine details ...  | |
Massey Ferguson 8E Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 44 inches
111 cm |
Weight | 510 lbs
231 kg |
Front tire | 4-8 |
Rear tire | 6-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
The Luxurious Executive Suburban Tractor published in 1964, by Massey Ferguson |
Engine
Engine Detail — Gasoline
Manufacturer | Kohler |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Power | 8 hp
6.0 kW |
Starter | electric |
Starter volts | 12 |

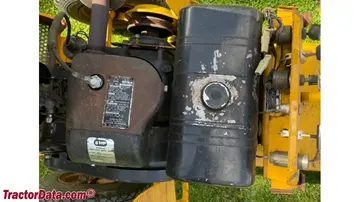

Massey Ferguson 8E Engine | |
|---|---|
 | |
Image courtesy of Greg |
Transmission
Transmission — 3 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 3 forward and 1 reverse |
Dimensions
Massey Ferguson 8E Tires | |
|---|---|
Lawn/turf front | 4-8 |
Lawn/turf rear | 6-12 |
Dimensions | |
|---|---|
Wheelbase | 44 inches
111 cm |
Length | 61 inches
154 cm |
Height (steering wheel) | 37 inches
93 cm |
Weight | 510 lbs
231 kg |
Attachments
Attachment overview | |
|---|---|
32" mid-mount mower deck | |
Snowblower | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
32" Mower deck | |
|---|---|
Type | mid-mount Massey Ferguson |
2-blade | |
Cutting width | 32 inches
81 cm |
Photos
Massey Ferguson 8E Executive
Massey Ferguson 8E Executive
Massey Ferguson 8E Executive
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson Lawn Tractors Massey Ferguson 8E Executive.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Massey Ferguson Lawn Tractors Massey Ferguson 8E Executive Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Massey Ferguson Lawn Tractors Massey Ferguson 8E Executive.
Converted Equivalents:
Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
