Massey Ferguson 16

The Massey Ferguson 16 is a tractor produced by Massey Ferguson Lawn Tractors. It is equipped with a 588 cc 35.9 ci engine. The rated power output is 16 hp 11.9 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 940 lbs*Weight with 48-inch mower deck. 426 kg.

Engine Power
16 hp 11.9 kW
Fuel & Capacities
2.5 gal 9.5 L
Transmission
infinite forward and reverse (2-range)
Operating Weight
940 lbs*Weight with 48-inch mower deck. 426 kg

Massey Ferguson Lawn Tractors Massey Ferguson 16 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

Massey Ferguson 16 tractor photo
1975 - 1976 Garden tractorAMF built
1975 - 1976
Garden tractor
AMF built
1975 - 1976
Garden tractor
AMF built
Production
Distributor
Massey Ferguson
Manufacturer
AMF
Garden tractor
Built in Des Moines, Iowa, USA
Massey Ferguson 16 Engine
16HP Kohler 588cc 1-cyl gasoline
Fuel tank
2.5 gal 9.5 L
Engine details ...
Massey Ferguson 16 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.
Power Take-off (PTO)
Front PTO
independent
Clutch
electric
Dimensions & Tires
Wheelbase
47 inches 119 cm
Weight
940 lbs 426 kg
Front tire
16x6.50-8
Rear tire
23x8.50-12
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
Battery AH
42
References
16 references literature
Lawn and Garden Equipment published in 1975, by Massey Ferguson
Mowers (1448 766 M1) published in 1978
Complete Farm Machinery Guide published in 1976, by Massey Ferguson

Engine

Massey Ferguson 16 tractor photo
1975 - 1976 Garden tractorAMF built
1975 - 1976
Garden tractor
AMF built
1975 - 1976
Garden tractor
AMF built

Engine Detail — 588 cc / 35.9 ci Gasoline

Manufacturer
Kohler K341
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled horizontal-shaft
Displacement
588 cc 35.9 ci
Bore/Stroke
3.75x3.25 inches 95 x 83 mm
Power
16 hp 11.9 kW
Starter volts
12
Oil capacity
2 qts 1.9 L

Transmission

Massey Ferguson 16 tractor photo
1975 - 1976 Garden tractorAMF built
1975 - 1976
Garden tractor
AMF built
1975 - 1976
Garden tractor
AMF built

Transmission — infinite forward and reverse (2-range) shaft-driven hydrostatic

Type
shaft-driven hydrostatic
Gears
infinite forward and reverse (2-range)
Oil capacity
5 qts 4.7 L
16 shaft-driven hydrostatic speeds

Dimensions

Massey Ferguson 16 tractor photo
1975 - 1976 Garden tractorAMF built
1975 - 1976
Garden tractor
AMF built
1975 - 1976
Garden tractor
AMF built
Massey Ferguson 16 Tires
Lawn/turf front
16x6.50-8
Lawn/turf rear
23x8.50-12
Dimensions
Wheelbase
47 inches 119 cm
Length
70.5 inches 179 cm
Width
36.25 inches 92 cm
Height (steering wheel)
44.75 inches 113 cm
Weight
940 lbs*Weight with 48-inch mower deck. 426 kg
Ground clearance
6.5 inches 16 cm
Front tread
28 inches 71 cm
Rear tread
28 inches 71 cm

Attachments

Massey Ferguson 16 tractor photo
1975 - 1976 Garden tractorAMF built
1975 - 1976
Garden tractor
AMF built
1975 - 1976
Garden tractor
AMF built
Attachment overview
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.
48" Mower deck
Type
mid-mount Massey Ferguson
3-blade
Cutting width
48 inches 121 cm
Cut height
2 to 4.4 inch 5 to 11 cm

Photos

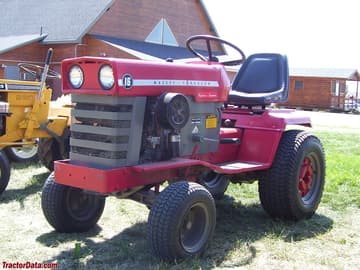

Massey Ferguson 16
