Massey Ferguson 116LTX
The Massey Ferguson 116LTX is a tractor produced by Massey Ferguson Lawn Tractors. It is equipped with a 480 cc 29.3 ci engine. The rated power output is 16 hp 11.9 kW. Transmission: infinite forward and reverse. Operating weight: 349 lbs 158 kg.
Engine Power
16 hp
11.9 kW
Fuel & Capacities
2.1 gal
7.9 L
Transmission
infinite forward and reverse
Operating Weight
349 lbs
158 kg
Massey Ferguson Lawn Tractors Massey Ferguson 116LTX Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1991 - 1994
100 LTX SeriesLawn tractorIngersoll built |
|---|---|
1991 - 1994 | |
100 LTX Series | |
Lawn tractor | |
Ingersoll built | |
1991 - 1994 | |
|---|---|
100 LTX Series | |
Lawn tractor | |
Ingersoll built |
Production | |
|---|---|
Distributor | Massey Ferguson |
Manufacturer | Ingersoll |
Lawn tractor | |
Massey Ferguson 116LTX Engine | |
|---|---|
16HP Briggs & Stratton 480cc 2-cyl gasoline | |
Fuel tank | 2.1 gal
7.9 L |
Engine details ...  | |
Massey Ferguson 116LTX Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Wheelbase | 42 inches
106 cm |
Weight | 349 lbs
158 kg |
Front tire | 13x6.50-6 |
Rear tire | 18x8.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 16 |
Battery volts | 12 |
References | |
|---|---|
 | |
100 Series published in 1990, by Massey Ferguson | |
Lawn and Garden Tractors published in 1991, by Massey Ferguson |
Engine
| 1991 - 1994
100 LTX SeriesLawn tractorIngersoll built |
|---|---|
1991 - 1994 | |
100 LTX Series | |
Lawn tractor | |
Ingersoll built | |
1991 - 1994 | |
|---|---|
100 LTX Series | |
Lawn tractor | |
Ingersoll built |
Engine Detail — 480 cc / 29.3 ci Gasoline
Manufacturer | Briggs & Stratton 303777 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft |
Displacement | 480 cc
29.3 ci |
Bore/Stroke | 2.68x2.60 inches
68 x 66 mm |
Power (gross) | 16 hp
11.9 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.5 qts
1.4 L |
Transmission
| 1991 - 1994
100 LTX SeriesLawn tractorIngersoll built |
|---|---|
1991 - 1994 | |
100 LTX Series | |
Lawn tractor | |
Ingersoll built | |
1991 - 1994 | |
|---|---|
100 LTX Series | |
Lawn tractor | |
Ingersoll built |
Transmission — infinite forward and reverse belt-driven hydrostatic
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 1991 - 1994
100 LTX SeriesLawn tractorIngersoll built |
|---|---|
1991 - 1994 | |
100 LTX Series | |
Lawn tractor | |
Ingersoll built | |
1991 - 1994 | |
|---|---|
100 LTX Series | |
Lawn tractor | |
Ingersoll built |
Massey Ferguson 116LTX Tires | |
|---|---|
Lawn/turf front | 13x6.50-6 |
Lawn/turf rear | 18x8.50-8 |
Dimensions | |
|---|---|
Wheelbase | 42 inches
106 cm |
Length | 60.25 inches
153 cm |
Width | 33 inches
83 cm |
Height | 39 inches
99 cm |
Weight | 349 lbs
158 kg |
Attachments
| 1991 - 1994
100 LTX SeriesLawn tractorIngersoll built |
|---|---|
1991 - 1994 | |
100 LTX Series | |
Lawn tractor | |
Ingersoll built | |
1991 - 1994 | |
|---|---|
100 LTX Series | |
Lawn tractor | |
Ingersoll built |
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
44" mid-mount mower deck | |
Snowblower | |
Blade |
Photos

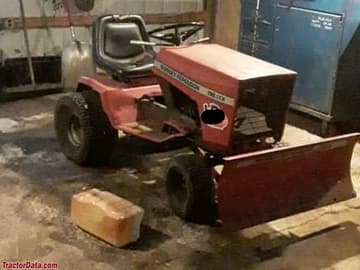

Massey Ferguson 116LTX
