Massey Ferguson 2818H

The Massey Ferguson 2818H is a tractor produced by Massey Ferguson Lawn Tractors. It is equipped with a 622 cc 38 ci engine. The rated power output is 18 hp 13.4 kW. Transmission: infinite forward and reverse. Operating weight: 689 lbs*Weight of tractor alone. 312 kg.

Overview

	1995 - 1999 2800 SeriesGarden tractorSimplicity built
1995 - 1999
2800 Series
Garden tractor
Simplicity built

1995 - 1999
2800 Series
Garden tractor
Simplicity built

Production
Distributor	Massey Ferguson
Manufacturer	Simplicity
Garden tractor
Built in Port Washington, Wisconsin, USA
The power steering model was advertised as the Massey Ferguson 2818PS.

Variants
Sovereign 18H	similar Simplicity model
918H	similar AGCO model

Massey Ferguson 2818H Engine
18HP Kohler 622cc 2-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Massey Ferguson 2818H Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Steering	power
Mechanical band brakes
Open operator station. Vinyl snow cab optional.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual

Dimensions & Tires
Wheelbase	50.7 inches 128 cm
Weight	689 lbs 312 kg
Front tire	16x6.50-8
Rear tire	23x10.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

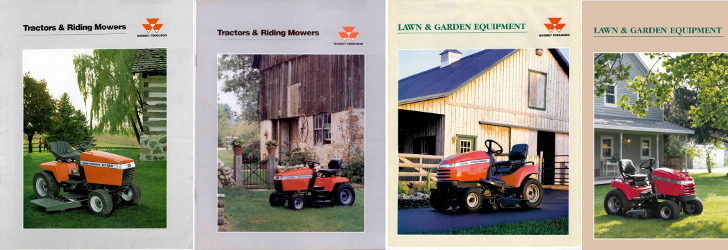

References
Tractors and Riding Mowers published in 1994, by Massey Ferguson
Tractors and Riding Mowers published in 1996, by Massey Ferguson
Lawn & Garden Equipment published in 1997, by Massey Ferguson
Lawn & Garden Equipment published in 1998, by Massey Ferguson

Engine

	1995 - 1999 2800 SeriesGarden tractorSimplicity built
1995 - 1999
2800 Series
Garden tractor
Simplicity built

1995 - 1999
2800 Series
Garden tractor
Simplicity built

Engine Detail — 622 cc / 38 ci Gasoline

Manufacturer	Kohler Command
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft V-Twin
Displacement	622 cc 38 ci
Bore/Stroke	3.03x2.64 inches 77 x 67 mm
Power (gross)	18 hp 13.4 kW
Starter	electric
Starter volts	12

Massey Ferguson 2818H Engine

Transmission

	1995 - 1999 2800 SeriesGarden tractorSimplicity built
1995 - 1999
2800 Series
Garden tractor
Simplicity built

1995 - 1999
2800 Series
Garden tractor
Simplicity built

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

	1995 - 1999 2800 SeriesGarden tractorSimplicity built
1995 - 1999
2800 Series
Garden tractor
Simplicity built

1995 - 1999
2800 Series
Garden tractor
Simplicity built

Massey Ferguson 2818H Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.5-12

Dimensions
Wheelbase	50.7 inches 128 cm
Length	70 inches 177 cm
Width	37 inches 93 cm
Height (steering wheel)	40 inches 101 cm
Weight	689 lbs*Weight of tractor alone. 312 kg
5-bolt flange rear axle

Attachments

	1995 - 1999 2800 SeriesGarden tractorSimplicity built
1995 - 1999
2800 Series
Garden tractor
Simplicity built

1995 - 1999
2800 Series
Garden tractor
Simplicity built

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
A 36-inch rear tiller was advertised.

Photos

Massey Ferguson 2818H
