Massey Ferguson ELF
The Massey Ferguson ELF is a tractor produced by Massey Ferguson Lawn Tractors. It is equipped with a 392 cc 23.92 ci engine. The listed engine power is Gasoline (listed): 8 hp / 6.0 kW. Transmission: 4 forward and 2 reverse. Operating weight: 822 lbs 372 kg.
Engine Power
Gasoline (listed): 8 hp / 6.0 kW
Fuel & Capacities
2 gal
7.6 L
Transmission
4 forward and 2 reverse
Operating Weight
822 lbs
372 kg
Overview
 | 1962
Garden tractorGutbrod built
Garden tractor
Gutbrod built |
|---|
Production | |
|---|---|
Distributor | Massey Ferguson |
Manufacturer | Gutbrod |
Garden tractor | |
Built in Germany | |
Massey Ferguson ELF Engine | |
|---|---|
6.0KW Motosacoche 392cc 1-cyl gasoline | |
Fuel tank | 2 gal
7.6 L |
Engine details ...  | |
Massey Ferguson ELF Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | mechanical rear |
Manual steering | |
Mechanical band brakes | |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Wheelbase | 46.5 inches
118 cm |
Weight | 822 lbs
372 kg |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Elf - The small tractor with great potential published by Massey Ferguson |
Engine
Engine Detail — 392 cc / 23.92 ci Gasoline
Manufacturer | Motosacoche 1029 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 392 cc
23.92 ci |
Bore/Stroke | 3.23x2.91 inches
82 x 74 mm |
Power | 8 hp
6.0 kW |
Air cleaner | oil bath |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 4 forward and 2 reverse gear
Type | gear |
Gears | 4 forward and 2 reverse |
Clutch | dry disc |
 | |
Dimensions
Massey Ferguson ELF Tires | |
|---|---|
Ag front | 4-8 |
Ag rear | 6-12 |
Dimensions | |
|---|---|
Wheelbase | 46.5 inches
118 cm |
Length | 68.9 inches
175 cm |
Width | 38 inches
96 cm |
Weight | 822 lbs
372 kg |
Ground clearance | 7.875 inches
20 cm |
Photos

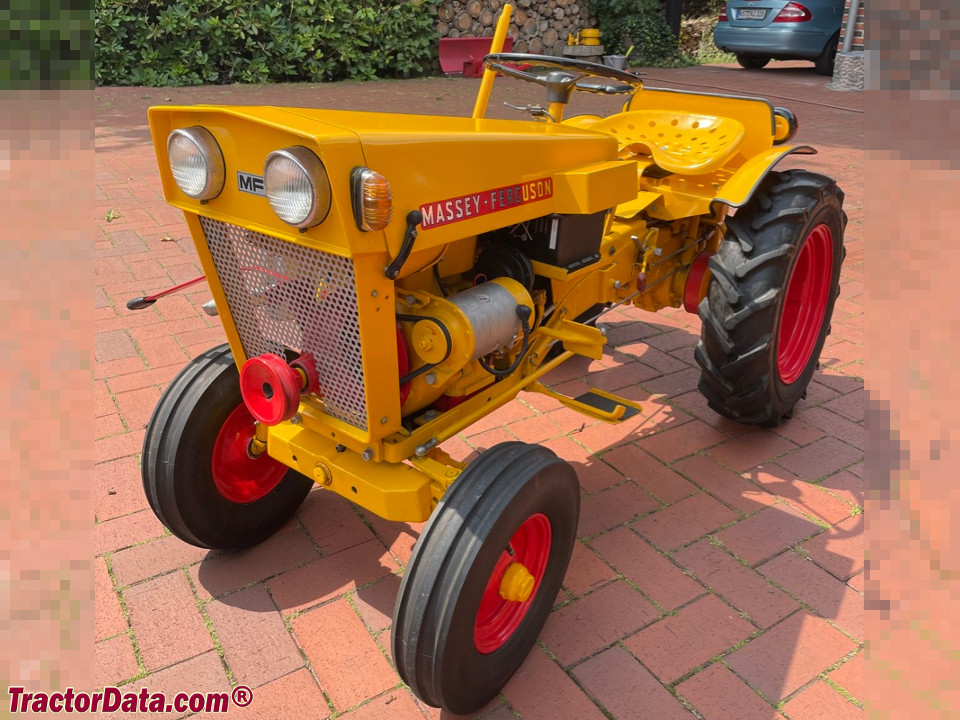

Massey Ferguson ELF

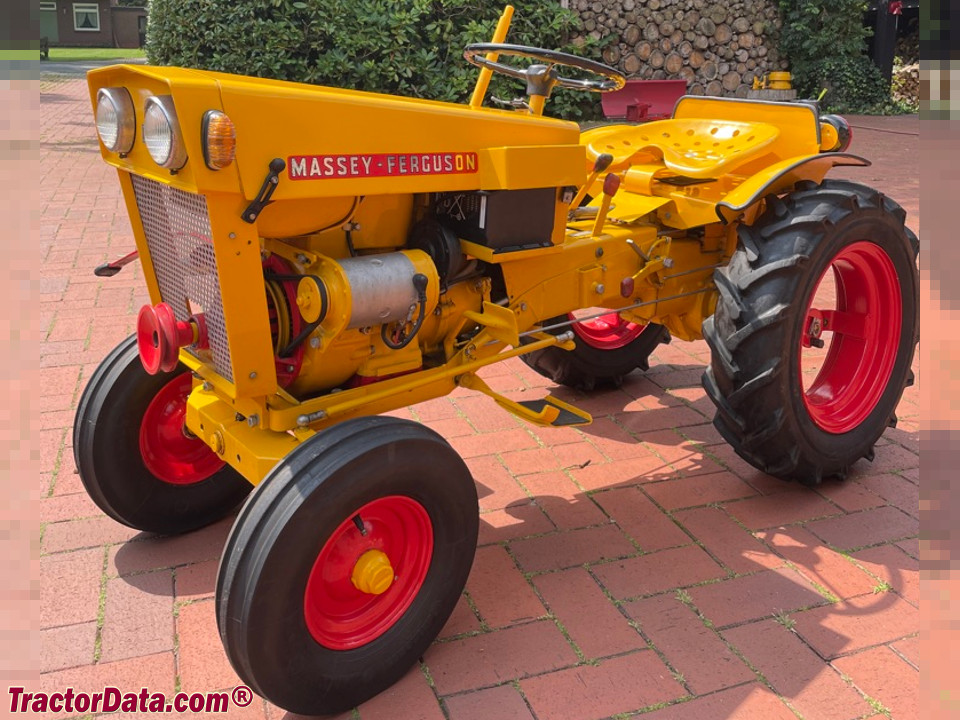

Massey Ferguson ELF
Massey Ferguson ELF
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson Lawn Tractors Massey Ferguson ELF.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Massey Ferguson Lawn Tractors Massey Ferguson ELF Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Massey Ferguson Lawn Tractors Massey Ferguson ELF.
Converted Equivalents:
Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
