McCormick Intl C70L

The McCormick Intl C70L is a tractor produced by Mccormick Intl. It is equipped with a 201 ci 3.3 L engine. The listed engine power is Diesel (listed): 66 hp / 49.2 kW. Transmission: 12 forward and reverse. Drive type: 4x2 2WD. Operating weight: 5,190 lbs (2WD) 2354 kg.

Engine Power

Diesel (listed): 66 hp / 49.2 kW

Drive & Traction

4x2 2WD

Fuel & Capacities

17.2 gal 65.1 L

Transmission

12 forward and reverse

Operating Weight

5,190 lbs (2WD) 2354 kg

Overview

	2007 - ????	2007 - ????

2007 - ????

Production
Manufacturer	McCormick Intl

McCormick Intl C70L Engine
Perkins 3.3L 3-cyl diesel
Fuel tank	17.2 gal 65.1 L
Engine details ...

McCormick Intl C70L Transmission
12-speed mechanical shuttle
Transmission details ...

McCormick Intl C70L Power
Engine	66 hp 49.2 kW
PTO (claimed)	60 hp 44.7 kW

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (optional)
Wet disc brakes
Foldable ROPS. Optional canopy.

Hydraulics
Pressure	2610 psi 180.0 bar
Valves	1 or 2
Pump flow	11.1 gpm 42.0 lpm
Total flow	16.4 gpm 62.1 lpm

Tractor hitch
Rear Type	II
Rear lift	5,950 lbs 2698 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540

Dimensions & Tires
Wheelbase	79.9 inches 202 cm
Weight	5190 to 5476 pounds
Front tire	6.50-16
Rear tire	14.9R28
Full dimensions and tires ...

Engine

	2007 - ????	2007 - ????

2007 - ????

Engine Detail — 201 ci / 3.3 L Diesel

Manufacturer	Perkins 1103C-33T
Configuration	turbocharged diesel, 3-cylinder, liquid-cooled
Displacement	201 ci 3.3 L
Bore/Stroke	4.134x5.00 inches 105 x 127 mm
Power	66 hp 49.2 kW
Air cleaner	dual dry elements
Compression	18.25:1
Rated RPM	2200
Torque	199.1 lb-ft 270.0 Nm
Torque RPM	1400

Transmission

	2007 - ????	2007 - ????

2007 - ????

Transmission — 12 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	12 forward and reverse

Dimensions

	2007 - ????	2007 - ????

2007 - ????

McCormick Intl C70L Tires
Ag front	6.50-16 (2WD)
	11.2R20 (4WD)
Ag rear	14.9R28

Dimensions
Wheelbase	79.9 inches 202 cm
Length	152.5 inches 387 cm
Width	66.6 inches 169 cm
Height (steering wheel)	62.4 inches 158 cm
Height (ROPS)	94.9 inches 241 cm
Weight	5,190 lbs (2WD) 2354 kg
	5,476 lbs (4WD) 2483 kg
Ground clearance	14.4 inches 36 cm
Front tread	57.1 to 72.7 inches 145 to 184 cm
Rear tread	47 to 75 inches 119 to 190 cm

Photos

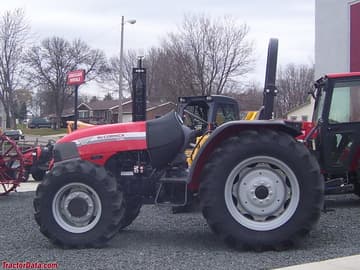

McCormick Intl C70L

Recommended Implements & Sizing Guide

Engineering recommendations for Mccormick Intl C70L based on its 66 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Mccormick Intl C70L.

Estimated Continuous Field Runtime: 5 hrs

Approximately 5 hours of continuous field operation at ~75% rated power on a full tank (17.2 gal / 65.1 L).

Estimated 75% Load Fuel Burn~3.4 gal/hr (13 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
