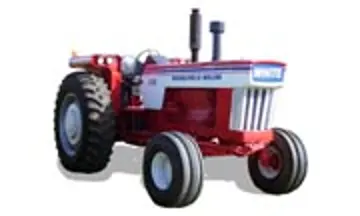

Minneapolis-Moline G1350
The Minneapolis-Moline G1350 is a tractor produced by Minneapolis Moline. It is equipped with a 504 ci 8.3 L engine. The listed engine power is 141.44 hp 105.5 kW. Transmission: Minneapolis-Moline Ampli-Torc. Operating weight: 12050 lbs 5465 kg.
Engine Power
141.44 hp
105.5 kW
Fuel & Capacities
LP gas
Transmission
Minneapolis-Moline Ampli-Torc
Operating Weight
12050 lbs
5465 kg
Overview
 | 1969 - 1971
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Minneapolis-Moline (a part of White) |
Row-Crop tractor | |
Built in Minneapolis, Minnesota, USA | |
Original price was $13,700 in 1971 | |
Minneapolis-Moline G1350 Transmission | |
|---|---|
10-speed two-speed power shift | |
Transmission details ...  |
Minneapolis-Moline G1350 Power | |
|---|---|
Diesel PTO (claimed) | 141 hp
105.1 kW |
LP-gas PTO (claimed) | 135 hp
100.7 kW |
Drawbar (tested) | 116.41 hp
86.8 kW |
PTO (tested) | 141.44 hp
105.5 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Final drives | outboard planetary |
Power steering | |
Dry disc brakes | |
Open operator station. Cab optional with heat and air-conditioning. | |
Hydraulics | |
|---|---|
Type | open center |
closed center OptOptional | |
Pressure | 2000 psi
137.9 bar |
Valves | 2 or 3 |
Pump flow | 20 gpm
75.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | III/II |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | wet disc |
Rear PTO Type | 1000 (1.375) |
540/1000 (1.375) | |
Engine RPM | 540@1800 |
1000@1800 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 104.25 inches
264 cm |
Weight | 12050 lbs
5465 kg |
Front tire | 7.50x18 |
Rear tire | 18.4x38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Batteries | 2 |
Battery volts | 12 |
References | |
|---|---|
 | |
Model G1350 published in 1970, by Minneapolis-Moline | |
G1350 published in 1972, by White | |
Model G1350 published in 1972, by Minneapolis-Moline |
Engine
Engine options | |
|---|---|
Minneapolis-Moline 9.6L 6-cyl diesel | |
Minneapolis-Moline 8.3L 6-cyl LP gas |
Engine Detail — 585 ci / 9.6 L Diesel
Manufacturer | Minneapolis-Moline |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 585 ci
9.6 L |
Bore/Stroke | 4.75x5.50 inches
121 x 140 mm |
Air cleaner | dry element |
Compression | 15.3:1 |
Rated RPM | 2200 |
Starter volts | 12 |
Engine Detail — 504 ci / 8.3 L LP Gas
Manufacturer | Minneapolis-Moline |
Fuel Type | LP gas |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 504 ci
8.3 L |
Bore/Stroke | 4.625x5.00 inches
117 x 127 mm |
Air cleaner | dry element |
Rated RPM | 1800 |
Starter volts | 12 |

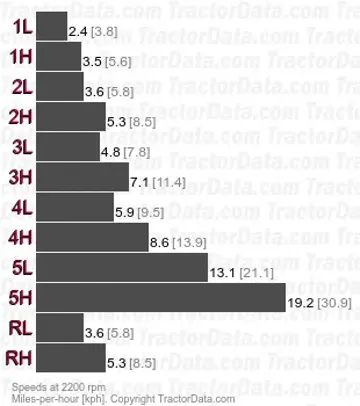

Transmission
Transmission — Minneapolis-Moline Ampli-Torc
Transmission | Minneapolis-Moline Ampli-Torc |
Type | two-speed power shift |
Gears | 10 forward and 2 reverse |
Clutch | 355.6mm dry disc |
With 18.4x38 rear tires. | |
 | |
Dimensions
Minneapolis-Moline G1350 Tires | |
|---|---|
Ag front | 7.50x18 |
Ag rear | 18.4x38 |
Ag front | 7.50x16 |
11.00x16 | |
11.00Lx15 | |
14.00Lx16A | |
Ag rear | 20.8x38 |
23.1x34 | |
24.5x32 | |
Dimensions | |
|---|---|
Wheelbase | 104.25 inches
264 cm |
Length | 168.5 inches
427 cm |
Width | 95 inches*Minimum width.
241 cm |
Operating weight | 12050 lbs
5465 kg |
Ballasted weight | 20540 lbs
9316 kg |
Clearance (rear axle) | 27 inches
68 cm |
Clearance (drawbar) | 19 inches
48 cm |
Front tread | 54 inches
137 cm |
Front tread | 56 to 80 inches
142 to 203 cm |
Rear tread | 61 to 84 inches
154 to 213 cm |
Minneapolis-Moline G1350 Height | |
|---|---|
Steering wheel | 81 inches
205 cm |
Hood | 70 inches
177 cm |
Exhaust | 99 inches
251 cm |
Tests
Nebraska Tractor Test 1069 | |
|---|---|
Diesel 10-speed 2WD
May 24 - June 5, 1971
Link: Nebraska Tractor Test 1069 file | |
PTO performance | |
Power at rated engine speed | 141.44 hp
105.5 kW |
Fuel use | 9.7 gal/hour
36.7 l/hour |
Power at rated PTO speed | 128.10 hp
95.5 kW |
Fuel use | 8.4 gal/hour
31.8 l/hour |
Drawbar performance | |
Max power | 116.41 hp
86.8 kW |
Fuel use | 9.4 gal/hour
35.6 l/hour |
Gear 3-Low used for power test. | |
Max pull | 15620 lbs
7085 kg |
Gear 1-Low used for pull test. | |

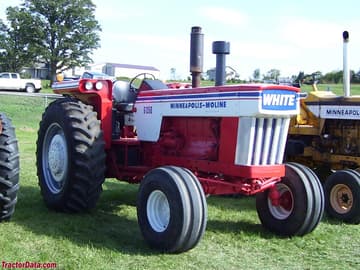

Photos
Minneapolis-Moline G1350
Recommended Implements & Sizing Guide
Engineering recommendations for Minneapolis Moline Minneapolis-Moline G1350 based on its 141.44 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 5 to 7 Bottom (18")5 - 7 铧 (45 cm) | Commercial / Field Scale | Large acreage tillage; requires front ballast weights. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Minneapolis Moline Minneapolis-Moline G1350.
Estimated Continuous Field Runtime: 1.3 hrs
Approximately 1.3 hours of continuous field operation at ~75% rated power on a full tank (9.4 gal / 35.6 L).
Estimated 75% Load Fuel Burn~7.4 gal/hr (27.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Minneapolis Moline Minneapolis-Moline G1350 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Minneapolis Moline Minneapolis-Moline G1350.
Converted Equivalents:
Horsepower (HP)141.4 hp
Kilowatts (kW)105.5 kW
Metric Horsepower (PS / CV)143.4 PS
