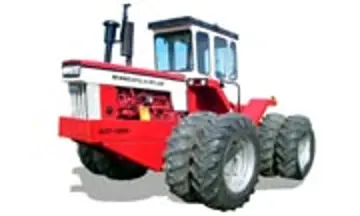

Minneapolis-Moline A4T-1400

The Minneapolis-Moline A4T-1400 is a tractor produced by Minneapolis Moline. It is equipped with a 504 ci 8.3 L engine. The listed engine power is Diesel (listed): 139 hp / 103.7 kW; Diesel (listed): 154 hp / 114.8 kW. Transmission: 10 forward and 2 reverse. Operating weight: 17300 lbs 7847 kg.

Overview

	1969 - 1970 Four-wheel Drive (4WD) tractor

Production
Manufacturer	Minneapolis-Moline (a part of White)
Four-wheel Drive (4WD) tractor
Built in Minneapolis, Minnesota, USA

Variants
A4T-1400	similar Minneapolis-Moline model
2455	similar Oliver model

Minneapolis-Moline A4T-1400 Engine
Minneapolis-Moline 8.3L 6-cyl diesel
Engine details ...

Minneapolis-Moline A4T-1400 Transmission
10-speed
Transmission details ...

Minneapolis-Moline A4T-1400 Power
Engine	154 hp 114.8 kW
PTO (claimed)	139 hp 103.7 kW

Mechanical
Four-wheel drive
Steering	hydrostatic power
Hydraulic dry disc brakes
Open operator station. Cab optional with heat.

Capacity
Fuel	100 gal 378.5 L
Hydraulic system	8 gal 30.3 L

Hydraulics
Type	open center
	closed center OptOptional
Capacity	8 gal 30.3 L
Pressure	1750 psi (open) 120.7 bar
	2000 psi (closed) 137.9 bar
Valves	2 or 3
Pump flow	17 gpm (open) 64.3 lpm
	20 gpm (closed) 75.7 lpm

Tractor hitch
Rear Type	III/II

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000

Dimensions & Tires
Wheelbase	120 inches 304 cm
Weight	17300 lbs 7847 kg
Front tire	18.4-34
Rear tire	18.4-34
Full dimensions and tires ...

References
A4T Plainsman published in 1970, by White

Engine

Engine Detail — 504 ci / 8.3 L Diesel

Manufacturer	Minneapolis-Moline
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	504 ci 8.3 L
Bore/Stroke	4.625x5.00 inches 117 x 127 mm
Power	139 hp 103.7 kW
Rated RPM	1800
Starter volts	12
Oil capacity	13 qts 12.3 L
Coolant capacity	33 qts 31.2 L

Engine Detail — 504 ci / 8.3 L Diesel

Manufacturer	Minneapolis-Moline
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	504 ci 8.3 L
Bore/Stroke	4.625x5.00 inches 117 x 127 mm
Power	154 hp 114.8 kW
Rated RPM	1800
Starter volts	12
Oil capacity	13 qts 12.3 L
Coolant capacity	33 qts 31.2 L

Transmission

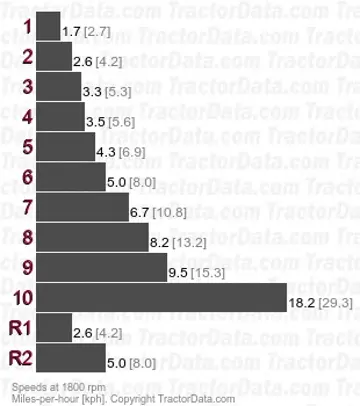

Transmission — 10 forward and 2 reverse

Gears	10 forward and 2 reverse
Clutch	355.6mm dry disc
Five gears (1-5) in two ranges (low/high).

Dimensions

Minneapolis-Moline A4T-1400 Tires
Ag front	18.4-34
Ag rear	18.4-34
Ag front	23.1-30
	24.5-32
	23.1-34
	18.4-38
Ag rear	23.1-30
	24.5-32
	23.1-34
	18.4-38

Dimensions
Wheelbase	120 inches 304 cm
Length	234 inches 594 cm
Width	96 inches 243 cm
Height (steering wheel)	99 inches 251 cm
Height (exhaust)	116 inches 294 cm
Weight	17300 lbs 7847 kg
Rear axle	3.25 inch diameter 82 mm

Photos

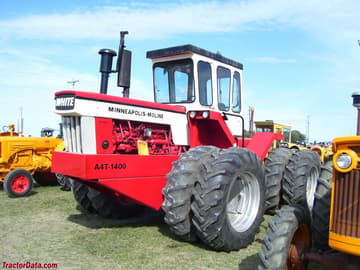

Minneapolis-Moline A4T-1400
