Minneapolis-Moline G750

The Minneapolis-Moline G750 is a tractor produced by Minneapolis Moline. It is equipped with a 265 ci 4.3 L engine. The listed engine power is 70.27 hp 52.4 kW. Transmission: Hydraul-Shift. Operating weight: 7500 to 8000 pounds.

Engine Power

70.27 hp 52.4 kW

Fuel & Capacities

27.5 gal 104.1 L

Transmission

Hydraul-Shift

Operating Weight

7500 to 8000 pounds

Overview

	1969 - 1975 Row-Crop tractor

Series map: G750G85077.8hp*95.6hp**Estimated engine power for comparison only.

Note: the Minneapolis-Moline model G750 is the same as the Oliver 1655. The following data is from the 1655 listing.

Production
Manufacturer	Minneapolis-Moline (a part of White)
Row-Crop tractor
Original price was $10,000 in 1975

Minneapolis-Moline G750 Power
PTO (claimed)	70 hp 52.2 kW
Drawbar (tested)	60.07 hp 44.8 kW
PTO (tested)	70.57 hp 52.6 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Disc brakes
Open operator station. Cab optional with available heater.

Capacity
Fuel	27.5 gal 104.1 L
Hydraulic system	14 gal 53.0 L

Hydraulics
Type	open center
Capacity	14 gal 53.0 L
Valves	2 to 4

Tractor hitch
Rear Type	II/I
Control	lower-link draft control

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540
	1000
	540/1000

Dimensions & Tires
2WD Wheelbase	99.25 inches 252 cm
4WD Wheelbase	82.125 inches 208 cm
Weight	7500 to 8000 pounds
Front tire	7.50-16
Rear tire	18.4-34
Full dimensions and tires ...

References

Model G750 published in 1971, by Minneapolis-Moline

Engine

Series map: G750G85077.8hp*95.6hp**Estimated engine power for comparison only.

Note: the Minneapolis-Moline model G750 is the same as the Oliver 1655. The following data is from the 1655 listing.

Engine options
Waukesha-Oliver 4.6L 6-cyl diesel
Waukesha-Oliver 4.3L 6-cyl gasoline

Engine Detail — 283 ci / 4.6 L Diesel

Manufacturer	Waukesha-Oliver
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	283 ci 4.6 L
Bore/Stroke	3.875x4.00 inches 98 x 102 mm
Air cleaner	dry
Compression	16.5:1
Rated RPM	2200
Starter volts	12
Oil capacity	8 qts 7.6 L
Coolant capacity	20 qts 18.9 L

Engine Detail — 265 ci / 4.3 L Gasoline

Manufacturer	Waukesha-Oliver
Fuel Type	Gasoline
Configuration	6-cylinder, liquid-cooled
Displacement	265 ci 4.3 L
Bore/Stroke	3.75x4.00 inches 95 x 102 mm
Air cleaner	dry
Compression	8.5:1
Rated RPM	2200
Firing order	1-5-3-6-2-4
Starter volts	12
Oil capacity	8 qts 7.6 L
Coolant capacity	20 qts 18.9 L

Transmission

Series map: G750G85077.8hp*95.6hp**Estimated engine power for comparison only.

Note: the Minneapolis-Moline model G750 is the same as the Oliver 1655. The following data is from the 1655 listing.

Transmission options
18-speed partial power shift
6-speed helical gear

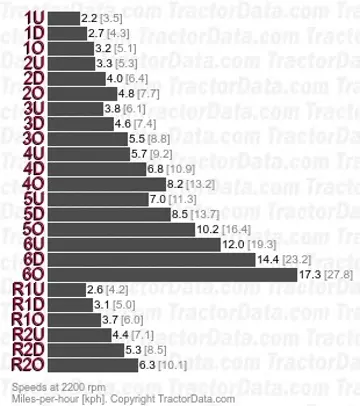

Transmission — Hydraul-Shift

Transmission	Hydraul-Shift
Type	partial power shift
Gears	18 forward and 6 reverse
Clutch	304.8mm dry disc
The Hydraul-Shift transmission allows a three-speed power shift between over, direct, and under drive for each gear.
With 16.9-38 rear tires.

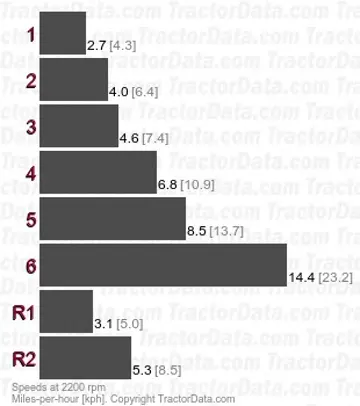

Transmission — 6 forward and 2 reverse helical gear

Type	helical gear
Gears	6 forward and 2 reverse
Clutch	304.8mm dry disc
Oil capacity	32 qts 30.3 L
With 16.9-38 rear tires.

Dimensions

Series map: G750G85077.8hp*95.6hp**Estimated engine power for comparison only.

Note: the Minneapolis-Moline model G750 is the same as the Oliver 1655. The following data is from the 1655 listing.

Minneapolis-Moline G750 Tires
Ag front	7.50-16
Ag rear	18.4-34
Ag front	6.00-16
	6.50-16
	7.50-15
	7.50-18
	11.00L-15
Ag rear	12.4-38
	13.6-38
	14.9-38
	15.5-38
	16.9-38

Dimensions
2WD Wheelbase	99.25 inches 252 cm
4WD Wheelbase	82.125 inches 208 cm
2WD Length	154.5 inches 392 cm
4WD Length	145.5 inches 369 cm
Width	81.5 inches 207 cm
2WD Front tread	61.5 to 87.5 inches 156 to 222 cm
4WD Front tread	60/70.75 inches 152/179 cm
Rear tread	56.5 to 89.5 inches 143 to 227 cm

Minneapolis-Moline G750 Weight
2WD Shipping	7500 lbs 3402 kg
4WD Shipping	8000 lbs 3628 kg
Gasoline Operating	7,700 lbs 3492 kg
Diesel Operating	8,000 lbs 3628 kg
Ballasted	11,100 lbs 5034 kg

Minneapolis-Moline G750 Height
Steering wheel	80 inches 203 cm
2WD Exhaust	98.75 inches 250 cm
4WD Exhaust	98.5 inches 250 cm

Tests

Series map: G750G85077.8hp*95.6hp**Estimated engine power for comparison only.

Note: the Minneapolis-Moline model G750 is the same as the Oliver 1655. The following data is from the 1655 listing.

Tractor Tests
NTTL 1041: diesel 18-speed 2WD
NTTL 1042: gasoline 18-speed 2WD

Nebraska Tractor Test 1041
Diesel 18-speed 2WD May 5 - 22, 1970 Link: Nebraska Tractor Test 1041 file
PTO performance
Power at rated engine speed	70.57 hp 52.6 kW
Fuel use	5.0 gal/hour 18.9 l/hour
Drawbar performance
Max power	60.07 hp 44.8 kW
Fuel use	4.9 gal/hour 18.5 l/hour
Gear 3-Direct used for power test.
Max pull	9,097 lbs 4126 kg
Gear 1-Direct used for pull test.

Nebraska Tractor Test 1042
Gasoline 18-speed 2WD May 7 - 22, 1970 Link: Nebraska Tractor Test 1042 file
PTO performance
Power at rated engine speed	70.27 hp 52.4 kW
Fuel use	6.6 gal/hour 25.0 l/hour
Drawbar performance
Max power	57.44 hp 42.8 kW
Fuel use	6.5 gal/hour 24.6 l/hour
Gear 3-Direct used for power test.
Max pull	8,519 lbs 3864 kg
Gear 1-Direct used for pull test.

Photos

Minneapolis-Moline G750

Minnepolis-Moline G750 operator station and controls.

Recommended Implements & Sizing Guide

Engineering recommendations for Minneapolis Moline Minneapolis-Moline G750 based on its 70.27 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Minneapolis Moline Minneapolis-Moline G750.

Estimated Continuous Field Runtime: 7.5 hrs

Approximately 7.5 hours of continuous field operation at ~75% rated power on a full tank (27.5 gal / 104.1 L).

Estimated 75% Load Fuel Burn~3.7 gal/hr (13.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Minneapolis Moline Minneapolis-Moline G750 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Minneapolis Moline Minneapolis-Moline G750.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)70.3 hp

Kilowatts (kW)52.4 kW

Metric Horsepower (PS / CV)71.2 PS
