Minneapolis-Moline MoTrac

The Minneapolis-Moline MoTrac is a tractor produced by Minneapolis Moline. It is equipped with a 206 ci 3.4 L engine. The listed engine power is Gasoline (listed): 59 hp / 44.0 kW; Diesel (listed): 59 hp / 44.0 kW. Transmission: 5 forward and reverse. Drive type: crawler.

Overview

	1960 - 1961 Agricultural Crawler tractor

Production
Manufacturer	Minneapolis-Moline
Agricultural Crawler tractor
Built in Minneapolis, Minnesota, USA
Total built	199 (total)
	161 (diesel)
	38 (gas)

Minneapolis-Moline MoTrac Transmission
5-speed shuttle
Transmission details ...

Minneapolis-Moline MoTrac Power
Engine	59 hp 44.0 kW

Mechanical
Drive	crawler
Open operator station

Dimensions & Tracks
Tracks
Full dimensions and tracks ...

Engine

Engine options
Minneapolis-Moline 3.4L 4-cyl gasoline
Minneapolis-Moline 3.4L 4-cyl diesel

Engine Detail — 206 ci / 3.4 L Gasoline

Manufacturer	Minneapolis-Moline 206M-4
Fuel Type	Gasoline
Configuration	4-cylinder, liquid-cooled
Displacement	206 ci 3.4 L
Bore/Stroke	3.625x5.00 inches 92 x 127 mm
Power	59 hp 44.0 kW
Firing order	1-3-4-2

Engine Detail — 206 ci / 3.4 L Diesel

Manufacturer	Minneapolis-Moline D206A-4
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	206 ci 3.4 L
Bore/Stroke	3.625x5.00 inches 92 x 127 mm
Power	59 hp 44.0 kW

Transmission

Transmission — 5 forward and reverse shuttle

Type	shuttle
Gears	5 forward and reverse

Dimensions

Minneapolis-Moline MoTrac Tracks

Dimensions

Photos

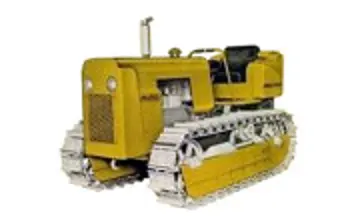

Minneapolis-Moline MoTrac tractor photo
