Minneapolis-Moline G950

The Minneapolis-Moline G950 is a tractor produced by Minneapolis Moline. It is equipped with a 425.5 ci 7.0 L engine. The listed engine power is 97.81 hp 72.9 kW. Transmission: Minneapolis-Moline Ampli-Torc. Operating weight: 10530 to 10550 pounds.

Engine Power

97.81 hp 72.9 kW

Fuel & Capacities

Gasoline

Transmission

Minneapolis-Moline Ampli-Torc

Operating Weight

10530 to 10550 pounds

Overview

	1969 - 1971 Standard-tread tractor

Production
Manufacturer	Minneapolis-Moline (a part of White)
Standard-tread tractor
Original price was $10,400 in 1971

Minneapolis-Moline G950 Power
Drawbar (claimed)	88 hp 65.6 kW
PTO (claimed)	97 hp 72.3 kW
Drawbar (tested)	87.88 hp 65.5 kW
PTO (tested)	97.81 hp 72.9 kW
Performance test details ...

Mechanical
Two-wheel drive
Power steering
Disc brakes
Open operator station.

Hydraulics
Type	closed center

Tractor hitch
Rear Type	III/II

Power Take-off (PTO)
Rear PTO	independent
Clutch	wet disc
Rear PTO Type	1000 (1.375)
	540/1000 (1.375)

Dimensions & Tires
Wheelbase	104.5 inches 265 cm
Weight	10530 to 10550 pounds
Front tire	6.50-16
Rear tire	18.4-34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
LP-gas Batteries	1
Diesel Batteries	2
Battery volts	12

References

Model G950 published in 1970, by Minneapolis-Moline
Models G950 - G1050 published in 1972, by Minneapolis-Moline

Engine

Engine options
Minneapolis-Moline 7.4L 6-cyl diesel
Minneapolis-Moline 7.0L 6-cyl LP gas
Minneapolis-Moline 7.0L 6-cyl gasoline

Engine Detail — 451 ci / 7.4 L Diesel

Manufacturer	Minneapolis-Moline D451-6
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	451 ci 7.4 L
Bore/Stroke	4.375x5.00 inches 111 x 127 mm
Air cleaner	dry
Compression	15.4:1
Rated RPM	1800
Starter volts	12
Oil capacity	13 qts 12.3 L
Coolant capacity	33 qts 31.2 L

Engine Detail — 425.5 ci / 7.0 L LP Gas

Manufacturer	Minneapolis-Moline 425C-6
Fuel Type	LP gas
Configuration	6-cylinder, liquid-cooled
Displacement	425.5 ci 7.0 L
Bore/Stroke	4.25x5.00 inches 108 x 127 mm
Air cleaner	dry
Compression	9:1
Rated RPM	1800
Firing order	1-5-3-6-2-4
Starter volts	12
Oil capacity	13 qts 12.3 L
Coolant capacity	30 qts 28.4 L

Engine Detail — 425.5 ci / 7.0 L Gasoline

Manufacturer	Minneapolis-Moline 425C-6
Fuel Type	Gasoline
Configuration	6-cylinder, liquid-cooled
Displacement	425.5 ci 7.0 L
Bore/Stroke	4.25x5.00 inches 108 x 127 mm
Air cleaner	dry
Compression	7.1:1
Rated RPM	1800
Firing order	1-5-3-6-2-4
Starter volts	12

Transmission

Transmission options

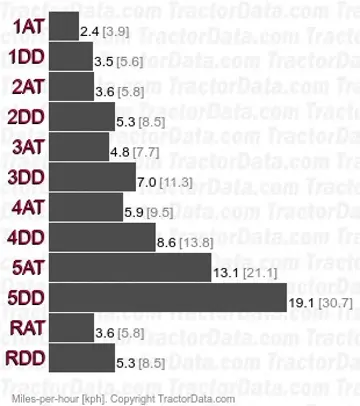

10-speed two-speed power shift
15-speed three-speed power shift

Transmission — Minneapolis-Moline Ampli-Torc

Transmission	Minneapolis-Moline Ampli-Torc
Type	two-speed power shift
Gears	10 forward and 2 reverse
Clutch	355.6mm dry disc
Oil capacity	88 qts 83.3 L
Five-speed transmission with power shift between drive drive (DD) and Ampli-Torc (AT).
With 18.4-38 rear tires.

Transmission — Minneapolis-Moline Ampli-Torc

Transmission	Minneapolis-Moline Ampli-Torc
Type	three-speed power shift
Gears	15 forward and 3 reverse
Clutch	355.6mm dry disc
Oil capacity	88 qts 83.3 L
Five-speed transmission with three-speed power shift.
With 18.4-38 rear tires.

Dimensions

Minneapolis-Moline G950 Tires
Ag front	6.50-16
Ag rear	18.4-34
Ag rear	18.4-38
	23.1-34
	24.5-32

Dimensions
Wheelbase	104.5 inches 265 cm
Length	164.5 inches 417 cm
Width	94.3 inches 239 cm
Diesel Weight	10550 lbs 4785 kg
LP-gas Weight	10530 lbs 4776 kg
Clearance (front axle)	21.5 inches (row-crop) 54 cm
	15.5 inches (standard) 39 cm
Clearance (rear axle)	24 inches 60 cm
Front tread	56 to 80 inches 142 to 203 cm (row-crop)
Front tread	54 inches 137 cm (standard)
Rear tread	60 to 96 inches 152 to 243 cm

Minneapolis-Moline G950 Height
Steering wheel	78 inches 198 cm
Hood	71 inches 180 cm
Exhaust	100 inches 254 cm

Tests

Tractor Tests
NTTL 978: diesel Ampli-Torc 2WD
NTTL 979: LP gas Ampli-Torc 2WD
NTTL 980: gasoline Ampli-Torc 2WD

Nebraska Tractor Test 978
Diesel Ampli-Torc 2WD June 4 - 20, 1968 Link: Nebraska Tractor Test 978 file
PTO performance
Power at rated engine speed	97.78 hp 72.9 kW
Fuel use	7.0 gal/hour 26.5 l/hour
Drawbar performance
Max power	83.30 hp 62.1 kW
Fuel use	6.8 gal/hour 25.7 l/hour
Gear 2DD used for power test.
Max pull	11,954 lbs 5422 kg
Gear 1AT used for pull test.

Nebraska Tractor Test 979
LP gas Ampli-Torc 2WD June 4 - 20, 1968 Link: Nebraska Tractor Test 979 file
PTO performance
Power at rated engine speed	97.57 hp 72.8 kW
Fuel use	10.0 gal/hour 37.9 l/hour
Drawbar performance
Max power	84.12 hp 62.7 kW
Fuel use	9.9 gal/hour 37.5 l/hour
Gear 2DD used for power test.
Max pull	12,006 lbs 5445 kg
Gear 1AT used for pull test.

Nebraska Tractor Test 980
Gasoline Ampli-Torc 2WD June 11 - 20, 1968 Link: Nebraska Tractor Test 980 file
PTO performance
Power at rated engine speed	97.81 hp 72.9 kW
Fuel use	8.4 gal/hour 31.8 l/hour
Drawbar performance
Max power	87.88 hp 65.5 kW
Fuel use	8.4 gal/hour 31.8 l/hour
Gear 2DD used for power test.
Max pull	11,808 lbs 5356 kg
Gear 1AT used for pull test.

Photos

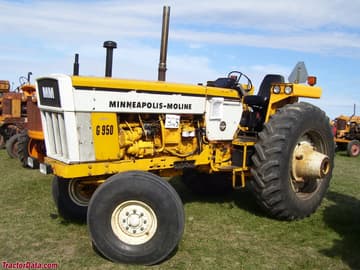

Minneapolis-Moline G950, left side.

Minneapolis-Moline G950 with 42-foot roller, right side.

Front view of Minneapolis-Moline G950 with corn planter.

Recommended Implements & Sizing Guide

Engineering recommendations for Minneapolis Moline Minneapolis-Moline G950 based on its 97.81 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Minneapolis Moline Minneapolis-Moline G950.

Estimated Continuous Field Runtime: 1.7 hrs

Approximately 1.7 hours of continuous field operation at ~75% rated power on a full tank (8.4 gal / 31.8 L).

Estimated 75% Load Fuel Burn~5.1 gal/hr (19.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Minneapolis Moline Minneapolis-Moline G950 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Minneapolis Moline Minneapolis-Moline G950.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)97.8 hp

Kilowatts (kW)72.9 kW

Metric Horsepower (PS / CV)99.2 PS
