Minneapolis-Moline Jet Star

The Minneapolis-Moline Jet Star is a tractor produced by Minneapolis Moline. It is equipped with a 206 ci 3.4 L engine. The listed engine power is Gasoline (listed): 56 hp / 41.8 kW; Diesel (listed): 50 hp / 37.3 kW. Transmission: Ampli-Torc. Operating weight: 3604 lbs 1634 kg.

Overview

	1959 - 1962 Constellation SeriesUtility tractor Constellation Series Utility tractor

Production
Manufacturer	Minneapolis-Moline
Utility tractor
Built in Minneapolis, Minnesota, USA
Original price was $5,000 in 1970

Minneapolis-Moline Jet Star Power
Engine	56 hp 41.8 kW
Gas Belt (claimed)	48 hp 35.8 kW
Diesel Belt (claimed)	40 hp 29.8 kW

Mechanical
Two-wheel drive
Disc brakes
Open operator station.

Tractor hitch
Rear Type	II

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540

Dimensions & Tires
Wheelbase	86.25 inches 219 cm
Weight	3604 lbs 1634 kg
Front tire	5.50-16
Rear tire	12.4-28
Full dimensions and tires ...

References
Jet Star Tractor published in 1960, by Minneapolis-Moline

Engine

Engine options
Minneapolis-Moline 3.4L 4-cyl gasoline
Minneapolis-Moline 3.4L 4-cyl diesel

Engine Detail — 206 ci / 3.4 L Gasoline

Manufacturer	Minneapolis-Moline 206L-4
Fuel Type	Gasoline
Configuration	4-cylinder, liquid-cooled
Displacement	206 ci 3.4 L
Bore/Stroke	3.625x5.00 inches 92 x 127 mm
Power	56 hp 41.8 kW
Rated RPM	1750
Coolant capacity	13.5 qts 12.8 L

Engine Detail — 206 ci / 3.4 L Diesel

Manufacturer	Minneapolis-Moline D206-4
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	206 ci 3.4 L
Bore/Stroke	3.625x5.00 inches 92 x 127 mm
Power	50 hp 37.3 kW
Rated RPM	1750
Oil capacity	6 qts 5.7 L
Coolant capacity	13.5 qts 12.8 L

Transmission

Transmission options
10-speed two-speed power shift
5-speed gear

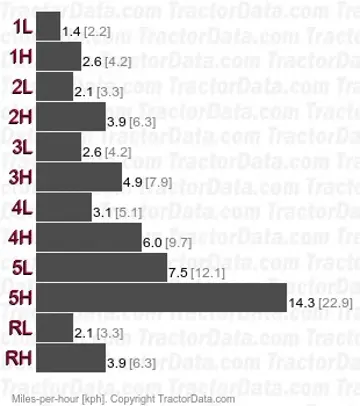

Transmission — Ampli-Torc

Transmission	Ampli-Torc
Type	two-speed power shift
Gears	10 forward and 2 reverse
Oil capacity	40 qts 37.9 L

Transmission — 5 forward and 1 reverse gear

Type	gear
Gears	5 forward and 1 reverse

Dimensions

Minneapolis-Moline Jet Star Tires
Ag front	5.50-16
Ag rear	12.4-28

Dimensions
Wheelbase	86.25 inches 219 cm
Length	125.25 inches 318 cm
Width	70.25 inches 178 cm
Height (steering wheel)	65 inches 165 cm
Height (exhaust)	77.5 inches 196 cm
Weight	3604 lbs 1634 kg
Clearance (front axle)	20 inches 50 cm
Clearance (rear axle)	19.5 inches 49 cm
Front tread	50 to 78 inches 127 to 198 cm
Rear tread	56 to 84 inches 142 to 213 cm

Photos

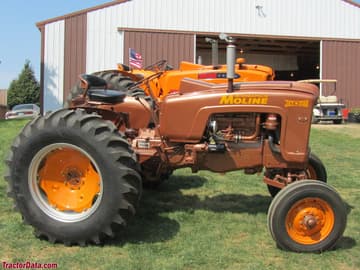

Minneapolis-Moline Jet Star.

Minneapolis-Moline Jet Star.

Minneapolis-Moline Jet Star operator station and controls.
