Minot 30
The Minot 30 is a tractor produced by Minot. It is equipped with a 116.23 ci 1.9 L engine. The listed engine power is Diesel (gross): 30 hp / 22.4 kW. Transmission: 8 forward and 2 reverse. Operating weight: 3462 to 3925 pounds.
Engine Power
Diesel (gross): 30 hp / 22.4 kW
Fuel & Capacities
7.9 gal
29.9 L
Transmission
8 forward and 2 reverse
Operating Weight
3925 lbs
1780 kg
Overview
 | 2006 - 2008
Compact Utility tractorJinma built
Compact Utility tractor
Jinma built |
|---|
Production | |
|---|---|
Distributor | Minot |
Manufacturer | Jinma |
Compact Utility tractor | |
Built in China | |
Original price was $15,565 in 2006 | |
Minot 30 Engine | |
|---|---|
1.9L 4-cyl diesel | |
Engine details ...  |
Minot 30 Transmission | |
|---|---|
8-speed | |
Transmission details ...  |
Minot 30 Power | |
|---|---|
Engine (gross) | 30 hp
22.4 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | power |
Two-post folding ROPS with canopy. | |
Capacity | |
|---|---|
Fuel | 7.9 gal
29.9 L |
Hydraulic system | 2.3 gal
8.7 L |
Front axle | 7 qts
6.6 L |
Hydraulics | |
|---|---|
Capacity | 2.3 gal
8.7 L |
Total flow | 3 gpm
11.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at 24"/610mm) | 1,100 lbs
498 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live (two-stage clutch) |
Rear PTO Type | 540/720 |
Dimensions & Tires | |
|---|---|
Wheelbase | 72 inches
182 cm |
Weight | 3462 to 3925 pounds |
Front tire | 7.50-16 |
Rear tire | 11.2-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 116.23 ci / 1.9 L Diesel
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 116.23 ci
1.9 L |
Bore/Stroke | 4.13x4.33 inches
105 x 110 mm |
Power (gross) | 30 hp
22.4 kW |
Rated RPM | 2000 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 6.3 qts
6.0 L |
Coolant capacity | 7.6 qts
7.2 L |
Transmission
Transmission — 8 forward and 2 reverse
Gears | 8 forward and 2 reverse |
Oil capacity | 19.5 qts
18.5 L |
 | |
Dimensions
Minot 30 Tires | |
|---|---|
Ag front | 7.50-16 |
Ag rear | 11.2-24 |
Dimensions | |
|---|---|
Wheelbase | 72 inches
182 cm |
Length | 127.5 inches
323 cm |
Width | 56.5 inches
143 cm |
Height | 96 inches
243 cm |
Shipping weight | 3462 lbs
1570 kg |
Operating weight | 3925 lbs
1780 kg |
Ground clearance | 10.5 inches
26 cm |
Front tread | 49 inches
124 cm |
Rear tread | 39.4 to 55.1 inches
100 to 139 cm |
Photos

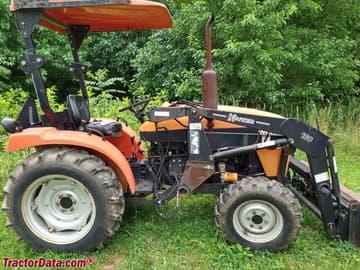

Minot 30
Recommended Implements & Sizing Guide
Engineering recommendations for Minot 30 based on its 30 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Minot 30.
Estimated Continuous Field Runtime: 5.1 hrs
Approximately 5.1 hours of continuous field operation at ~75% rated power on a full tank (7.9 gal / 29.9 L).
Estimated 75% Load Fuel Burn~1.6 gal/hr (5.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Minot 30 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Minot 30.
Converted Equivalents:
Horsepower (HP)30 hp
Kilowatts (kW)22.4 kW
Metric Horsepower (PS / CV)30.4 PS
Direct Competitor Comparison
Compare Minot 30 against same-era industry alternatives in the same horsepower class.
Current Model
Minot
Minot 30
Engine Power:Diesel (gross): 30 hp / 22.4 kW
★ Baseline Reference
