New Holland 9484

The New Holland 9484 is a tractor produced by New Holland. It is equipped with a 660 ci 10.8 L engine. The rated power output is 310 hp 231.2 kW. Transmission: Quadrasync. Operating weight: 18844 lbs 8547 kg.

Overview

	2000 - 2001 84 SeriesFour-wheel Drive (4WD) tractorVersatile built
2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

Production
Distributor	New Holland
Manufacturer	Versatile
Four-wheel Drive (4WD) tractor
Built in Winnipeg, Manitoba, Canada

New Holland 9484 Engine
Cummins 10.8L 6-cyl diesel
Engine details ...

New Holland 9484 Power
Engine (gross)	310 hp 231.2 kW

Mechanical
Four-wheel drive
Final drives	planetary
Articulated power steering
Hydraulic disc brakes
Cab standard with air-conditioning.

Capacity
Fuel	230 gal 870.6 L
Hydraulic system	20 gal (reservoir) 75.7 L
	33 gal (total system) 124.9 L

Hydraulics
Type	closed center
Capacity	20 gal (reservoir) 75.7 L
	33 gal (total system) 124.9 L
Pressure	2250 psi 155.1 bar
Valves	4
Pump flow	45 gpm 170.3 lpm
Steering flow	27 gpm 102.2 lpm
Steering press.	2500 psi 172.4 bar

Tractor hitch
Rear Type	IVN/III
Rear lift (at 24"/610mm)	13000 lbs 5896 kg
Drawbar	Cat. 4

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	1000 (1.75)
Engine RPM	1000@2100

Dimensions & Tires
Wheelbase	133 inches 337 cm
Weight	18844 lbs 8547 kg
Front tire	20.8-38
Rear tire	20.8-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	130
Batteries	3
Battery CCA	625
Battery volts	12

References
84 Series 4WD Tractors published in 1999, by New Holland
Operator's Manual 9184 - 9384 - 9484 - 9684 - 9884 (86584305) published in 1999

Engine

	2000 - 2001 84 SeriesFour-wheel Drive (4WD) tractorVersatile built
2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

Engine Detail — 660 ci / 10.8 L Diesel

Manufacturer	Cummins M11
Configuration	turbocharged aftercooled diesel, 6-cylinder, liquid-cooled inline
Displacement	660 ci 10.8 L
Bore/Stroke	4.921x5.787 inches 125 x 147 mm
Power (gross)	310 hp 231.2 kW
Air cleaner	dual paper elements
Compression	16.1:1
Rated RPM	2100
Idle RPM	850-2460
Torque	1050 lb-ft 1423.8 Nm
Torque RPM	1300
Firing order	1-5-3-6-2-4
Starter volts	12
Oil capacity	36.7 qts 34.7 L
Coolant capacity	62.3 qts 59.0 L

Transmission

	2000 - 2001 84 SeriesFour-wheel Drive (4WD) tractorVersatile built
2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

Transmission options
12-speed partially synchronized
12-speed full power shift

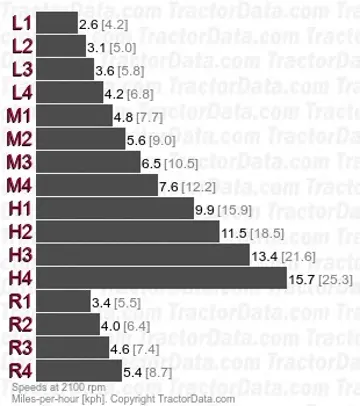

Transmission — Quadrasync

Transmission	Quadrasync
Type	partially synchronized
Gears	12 forward and 4 reverse
Clutch	hydraulic wet disc
Four synchronized gears in three ranges, plus reverse range. Gears may be shifted on the move, using the clutch. Tractor must be stopped, and clutch used, to shift range.
With 20.8-38 tires.

Transmission — 12 forward and 2 reverse full power shift

Type	full power shift
Gears	12 forward and 2 reverse
Clutch	electro-hydraulic wet disc
With 20.8-38 tires.

Dimensions

	2000 - 2001 84 SeriesFour-wheel Drive (4WD) tractorVersatile built
2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built

New Holland 9484 Tires
Ag front	20.8-38
Ag rear	20.8-38

Dimensions
Wheelbase	133 inches 337 cm
Length	266 inches 675 cm
Width	150.4 inches*Outer width of 20.8-38 duals. 382 cm
Height (cab)	134.9 inches 342 cm
Height (exhaust)	144.5 inches 367 cm
Shipping weight	18844 lbs 8547 kg
Max weight	34000 lbs 15422 kg

Photos

New Holland 9484 tractor photo
