New Holland T9.645 SmartTrax II

The New Holland T9.645 SmartTrax II is a tractor produced by New Holland. It is equipped with a 787 ci 12.9 L engine. The listed engine power is Diesel (gross): 580 hp / 432.5 kW. Transmission: Ultra Command. Drive type: articulated crawler. Operating weight: 58730 lbs 26639 kg.

Engine Power

Diesel (gross): 580 hp / 432.5 kW

Drive & Traction

articulated crawler

Fuel & Capacities

455 gal 1722.2 L

Transmission

Ultra Command

Operating Weight

58730 lbs 26639 kg

Overview

	2014 - T9 SeriesArticulated Crawler tractor
2014 -
T9 Series
Articulated Crawler tractor

Production
Manufacturer	New Holland (a part of CNH)
Articulated Crawler tractor
Built in Fargo, North Dakota, USA

Variants
T9.645	wheeled
T9.645 SmartTrax	crawler

New Holland T9.645 SmartTrax II Engine
FPT 12.9L 6-cyl diesel
Fuel tank	455 gal 1722.2 L
Exhaust fluid (DEF)	66 gal 249.8 L
Engine details ...

New Holland T9.645 SmartTrax II Transmission
17-speed full power shift
Transmission details ...

New Holland T9.645 SmartTrax II Power
Engine (gross)	580 hp 432.5 kW
Engine (max)	638 hp 475.8 kW
PTO (claimed)	478 hp 356.4 kW

Mechanical
Drive	articulated crawler
Steering	hydrostatic power articulated
Wet disc brakes
Trailer brakes	hydraulic OptOptional
Cab standard with air-condioning. Optional Comfort Ride cab suspension. ISOBUS compliant; Intelliview IV; IntelliSteer

Hydraulics
Type	closed center load sensing (CCLS)
Valves	4 to 8
Standard Pump flow	42 gpm 159.0 lpm
High-Flow Pump flow	57 gpm 215.7 lpm
MegaFlow Pump flow	113 gpm 427.7 lpm

Tractor hitch
Rear Type	IVN OptOptional
Control	position control
Rear lift (at 24"/610mm)	19621 lbs 8900 kg
Rear Arms	adjustable link ends
Drawbar	Cat. 4
	Cat. 5 OptOptional

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000 (1.75)

Dimensions & Tracks
Wheelbase	154 inches 391 cm
Weight	58730 lbs 26639 kg
36-inch tracks
Full dimensions and tracks ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Batteries	2
Battery CCA	1000
Battery volts	12

References

T9 Series published in 2018, by New Holland

Engine

Engine Detail — 787 ci / 12.9 L Diesel

Manufacturer	FPT Cursor 13 TST
Configuration	two-stage turbocharged inter-cooled and aftercooled diesel, 6-cylinder 24-valve, liquid-cooled
Displacement	787 ci 12.9 L
Bore/Stroke	5.31x5.91 inches 135 x 150 mm
Emissions	Tier IV
Emission control	selective catalytic reduction with diesel oxidation catalyst
Rated Power (gross)	580 hp 432.5 kW
Maximum Power (gross)	638 hp 475.8 kW
Fuel system	electronic direct-injection high pressure common rail
Cooling system	hydraulic fan drive
Rated RPM	2100
Torque	2033 lb-ft 2756.7 Nm
Torque RPM	1400
Starter	electric
Starter volts	24

Transmission

Transmission — Ultra Command

Transmission	Ultra Command
Type	full power shift

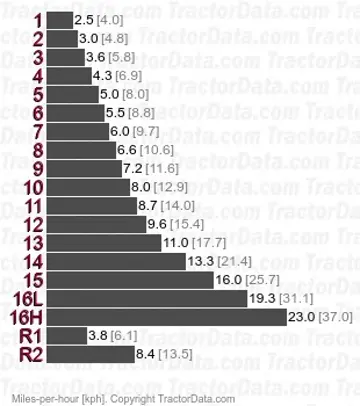

Gears	17 forward and 2 reverse

Dimensions

New Holland T9.645 SmartTrax II Tracks
Width	36 inches 91 cm

Dimensions
Wheelbase	154 inches 391 cm
Shipping weight	58730 lbs 26639 kg
Max weight	64000 lbs 29030 kg
Front axle	Bar: 5.5 by 120 inches 139 by 3048 mm
Bar rear axle	5.5 by 120 inches 139 by 3048 mm

Photos

New Holland T9.645 SmartTrax II tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for New Holland T9.645 SmartTrax II based on its 580 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁	Commercial / Field Scale	High horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙	Commercial / Field Scale	Broad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for New Holland T9.645 SmartTrax II.

Estimated Continuous Field Runtime: 15.1 hrs

Approximately 15.1 hours of continuous field operation at ~75% rated power on a full tank (455 gal / 1722.4 L).

Estimated 75% Load Fuel Burn~30.2 gal/hr (114.2 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
