New Holland TN65

The New Holland TN65 is a tractor produced by New Holland. It is equipped with a 179 ci 2.9 L engine. The listed engine power is Diesel (net): 53 hp / 39.5 kW; Diesel (gross): 57 hp / 42.5 kW. Transmission: Dual Command. Operating weight: 4665 to 5775 pounds.

Overview

	1998 - 2003 TN SeriesUtility tractor TN Series Utility tractor

Production
Manufacturer	New Holland
Utility tractor
Built in Jesi, Italy

Variants
TN65	ROPS
TN65D	cab
TN65S	SuperSteer
TN65F	orchard

New Holland TN65 Engine
Iveco 2.9L 3-cyl diesel
Engine details ...

New Holland TN65 Power
Engine (gross)	57 hp 42.5 kW
Engine (net)	53 hp 39.5 kW
PTO (claimed)	47 hp 35.0 kW
Drawbar (tested)	46.0 hp 34.3 kW
PTO (tested)	52.8 hp 39.4 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	planetary
Power steering
Differential hydraulic wet disc brakes
Two-post folding ROPS. Cab optional.

Capacity
Fuel	19.5 gal 73.8 L
Hydraulic system	11.1 gal 42.0 L

Hydraulics
Type	open center
Capacity	11.1 gal 42.0 L
Pressure	2755 psi 190.0 bar
Valves	1 to 3
Pump flow	12.4 gpm 46.9 lpm
	16.9 gpmOptOptional 64.0 lpm
Steering flow	7.2 gpm 27.3 lpm
	9.2 gpm*With power shuttle transmission option. 34.8 lpm

Tractor hitch
Rear Type	II
Rear lift (at 24"/610mm)	3962 lbs 1797 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	dry disc
Rear PTO Type	540 (1.375)

Dimensions & Tires
2WD ROPS Wheelbase	81.5 inches 207 cm
2WD Cab Wheelbase	83.9 inches 213 cm
4WD ROPS Wheelbase	78.9 inches 200 cm
4WD Cab Wheelbase	81.3 inches 206 cm
4WD SuperSteer Wheelbase	83.5 inches 212 cm
Weight	4665 to 5775 pounds
Front tire	7.50-16
2WD Rear tire	14.9-28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	45
Cab Charging amps	65
Battery CCA	730
Battery volts	12

References
New Holland TND/TNS Tractors published in 1998
New Holland TN/TND/TNS Tractors published in 2002
New! New Holland TND/TNS Tractors 42 to 62 PTO hp published in 1998
TN55D TN65D TN75D TN55S TN65S TN75S Operator's Manual (86572984) published in 1998

Engine

Engine Detail — 179 ci / 2.9 L Diesel

Manufacturer	Iveco 8035.05R
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	179 ci 2.9 L
Bore/Stroke	4.094x4.528 inches 104 x 115 mm
Power (net)	53 hp 39.5 kW
Power (gross)	57 hp 42.5 kW
Air cleaner	dual paper elements
Compression	18:1
Rated RPM	2300
Torque	162 lb-ft 219.7 Nm
Torque RPM	1400
Starter volts	12

Transmission

Transmission options
8-speed gear
8-speed partially synchronized
16-speed partially synchronized
32-speed two-speed power shift

Transmission — 8 forward and reverse gear

Type	gear
Gears	8 forward and reverse
Clutch	280mm dry disc
Four gears (1-4) in two ranges (A/B) with mechanical shuttle. Non-synchronized transmission, available only on the base TN65 model.
With 14.9-28 rear tires and 30 KPH transmission.

Transmission — Synchro Command

Transmission	Synchro Command
Type	partially synchronized
Gears	8 forward and reverse
Clutch	dry disc (mechanical shuttle)
	wet disc (power shuttle)
Four synchronized gears (1-4) in two ranges (A/B). Available as either mechanical shuttle or power shuttle.
With 14.9-28 rear tires and 30 KPH transmission.

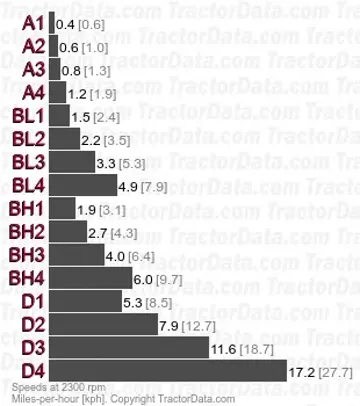

Transmission — Synchro Command Plus

Transmission	Synchro Command Plus
Type	partially synchronized
Gears	16 forward and reverse
Clutch	dry disc (mechanical shuttle)
	wet disc (power shuttle)
Four synchronized gears (1-4) in four ranges (A-D). Available as either mechanical shuttle or power shuttle. Standard transmission on the TN55D and TN55S.
With 14.9-28 rear tires and 30 KPH transmission.

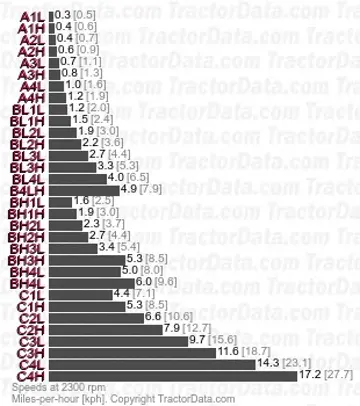

Transmission — Dual Command

Transmission	Dual Command
Type	two-speed power shift
Gears	32 forward and 16 reverse
Clutch	wet discs
Four synchronized gears (1-4) in four ranges (A-D) with two-speed push-button power shift. Left-hand power shuttle.
With 14.9-28 rear tires and 30 KPH transmission.

Dimensions

New Holland TN65 Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 14.9-28
4WD Standard tires (ag)	Front: 8.3-24. Rear: 14.9-28

Dimensions
2WD ROPS Wheelbase	81.5 inches 207 cm
2WD Cab Wheelbase	83.9 inches 213 cm
4WD ROPS Wheelbase	78.9 inches 200 cm
4WD Cab Wheelbase	81.3 inches 206 cm
4WD SuperSteer Wheelbase	83.5 inches 212 cm
Length	155 inches 393 cm
Width	67.2 inches*Minimum width 170 cm

New Holland TN65 Weight
2WD ROPS Shipping	4665 lbs 2116 kg
4WD ROPS Shipping	5140 lbs 2331 kg
2WD cab Shipping	5030 lbs 2281 kg
4WD Cab Shipping	5630 lbs 2553 kg
SuperSteer ROPS Shipping	5335 lbs 2419 kg
SuperSteer Cab Shipping	5775 lbs 2619 kg

New Holland TN65 Height
ROPS	95.1 inches 241 cm
Cab	90.8 inches 230 cm
Exhaust	90 inches 228 cm

Tests

Tractor Tests
OECD 1902: diesel 8-speed 4WD Cab
OECD 1948: diesel 8-speed 4WD ROPS

OCED Tractor Test 1902
Diesel 8-speed 4WD Cab April 1 - November 30, 1999 Link: OCED Tractor Test 1902 file
PTO performance
Power at rated engine speed	52.8 hp 39.4 kW
Fuel use	3.3 gal/hour 12.5 l/hour
Power at rated PTO speed	52.4 hp 39.1 kW
Fuel use	3.2 gal/hour 12.1 l/hour
Drawbar performance
Max power	42.7 hp 31.8 kW
Fuel use	3.3 gal/hour 12.5 l/hour
Gear 4S used for power test.
Max pull	6,785 lbs 3077 kg
Gear 2S used for pull test.

OCED Tractor Test 1948
Diesel 8-speed 4WD ROPS November 1 - December 31, 2000 Link: OCED Tractor Test 1948 file
PTO performance
Power at rated engine speed	52.7 hp 39.3 kW
Fuel use	3.4 gal/hour 12.9 l/hour
Power at rated PTO speed	51.8 hp 38.6 kW
Fuel use	3.2 gal/hour 12.1 l/hour
Drawbar performance
Max power	46.0 hp 34.3 kW
Fuel use	3.5 gal/hour 13.2 l/hour
Gear 3S used for power test.
Max pull	7,155 lbs 3245 kg
Gear 2S used for pull test.

Attachments

Attachment overview
New Holland 32LA loader
New Holland 32LA MSL loader
New Holland 33LA loader
New Holland 33LA MSL loader
The 32LA loader fit TN and TND models, the 33LA fit TNS SuperSteer tractors.

Photos

New Holland TN65 with 32LA front-end loader.

New Holland TN65 with 32LA front-end loader.

New Holland TN65 with 32LA front-end loader.

New Holland TN65 with 32LA front-end loader.

New Holland TN65 with 32LA front-end loader.

New Holland TN65 operator station and controls.
