New Holland MY17
The New Holland MY17 is a tractor produced by New Holland Lawn Tractors. The listed engine power is Gasoline (gross): 17 hp / 12.7 kW. Transmission: Hydro-Gear 330-300. Operating weight: 560 lbs 254 kg.
Engine Power
Gasoline (gross): 17 hp / 12.7 kW
Fuel & Capacities
3.9 gal
14.8 L
Transmission
Hydro-Gear 330-300
Operating Weight
560 lbs
254 kg
Overview
 | 2004 - 2007
MY SeriesGarden tractorToro built
MY Series
Garden tractor
Toro built |
|---|
Production | |
|---|---|
Distributor | New Holland |
Manufacturer | Toro |
Garden tractor | |
The New Holland MY17 is similar to the Toro 417XT. | |
New Holland MY17 Engine | |
|---|---|
17HP Kawasaki 2-cyl gasoline | |
Fuel tank | 3.9 gal
14.8 L |
Engine details ...  | |
New Holland MY17 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 49.5 inches
125 cm |
Weight | 560 lbs
254 kg |
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 13 |
Battery CCA | 340 |
Battery volts | 12 |
References | |
|---|---|
 | |
Lawn and Garden Equipment published in 2004, by New Holland |
Engine
Engine Detail — Gasoline
Manufacturer | Kawasaki FH541V |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled |
Power (gross) | 17 hp
12.7 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Hydro-Gear 330-300
Transmission | Hydro-Gear 330-300 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Cruise-control standard. | |
 | |
Dimensions
New Holland MY17 Tires | |
|---|---|
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x10.50-12 |
Dimensions | |
|---|---|
Wheelbase | 49.5 inches
125 cm |
Length | 71 inches
180 cm |
Width | 35.5 inches
90 cm |
Height (steering wheel) | 42.2 inches
107 cm |
Weight | 560 lbs
254 kg |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
48" mid-mount mower deck | |
52" mid-mount mower deck | |
Snowblower | |
Blade | |
Advertised MY-series attachments included a 36-inch tiller, 600-pound lawn roller, lawn sweeper, aerator, and towed dump carts. |
Photos

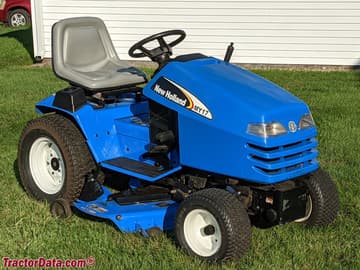

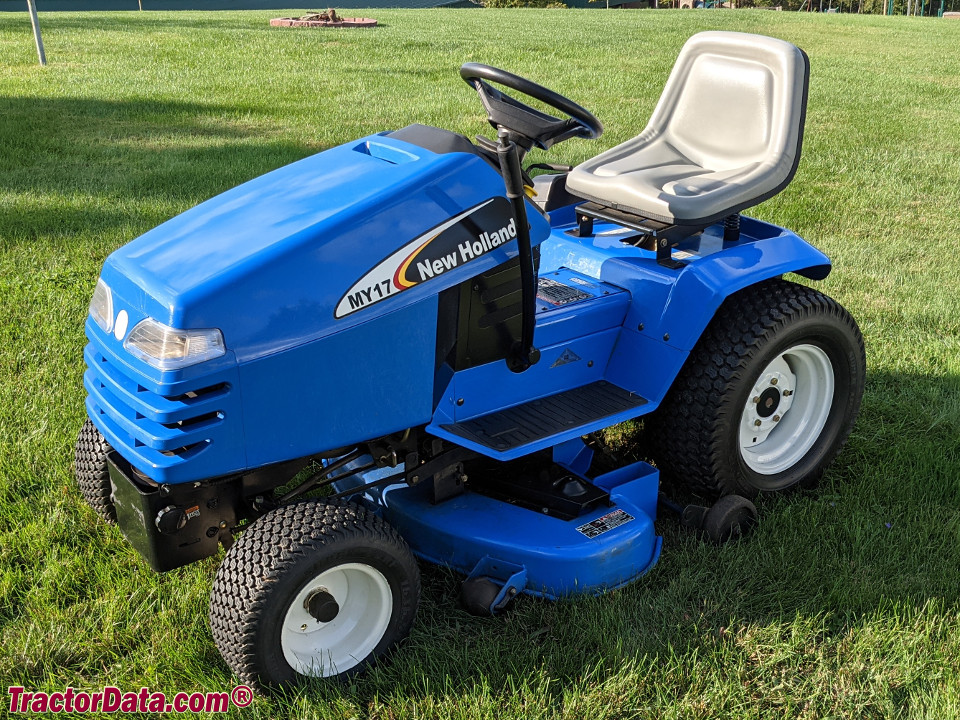

New Holland MY17

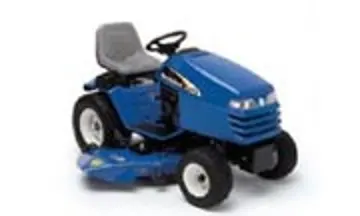

New Holland MY17
Recommended Implements & Sizing Guide
Engineering recommendations for New Holland Lawn Tractors New Holland MY17 based on its 17 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for New Holland Lawn Tractors New Holland MY17.
Estimated Continuous Field Runtime: 4.4 hrs
Approximately 4.4 hours of continuous field operation at ~75% rated power on a full tank (3.9 gal / 14.8 L).
Estimated 75% Load Fuel Burn~0.9 gal/hr (3.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
New Holland Lawn Tractors New Holland MY17 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for New Holland Lawn Tractors New Holland MY17.
Converted Equivalents:
Horsepower (HP)17 hp
Kilowatts (kW)12.7 kW
Metric Horsepower (PS / CV)17.2 PS
