Oliver 1550
The Oliver 1550 is a tractor produced by Oliver. It is equipped with a 232 ci 3.8 L engine. The rated power output is 53.3 hp 39.7 kW. Transmission: Hydra-Power. Operating weight: 7000 lbs 3175 kg.
Engine Power
53.3 hp
39.7 kW
Fuel & Capacities
Gasoline
Transmission
Hydra-Power
Operating Weight
7000 lbs
3175 kg
Oliver 1550 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1965 - 1969
50 SeriesRow-Crop tractor |
|---|---|
1965 - 1969 | |
50 Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Oliver |
Row-Crop tractor | |
Built in Charles City, Iowa, USA | |
Original price was $6,000 in 1969 | |
Variants | |
|---|---|
Row-crop | tricycle front, single front, or adjustable wide front |
Wheatland | standard front |
Utility | low-clearance |
Oliver 1550 Power | |
|---|---|
Gas PTO (claimed) | 53 hp
39.5 kW |
Diesel PTO (claimed) | 53 hp
39.5 kW |
LP-gas PTO (claimed) | 51 hp
38.0 kW |
Drawbar (tested) | 45.7 hp
34.1 kW |
PTO (tested) | 53.50 hp
39.9 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | power assist |
Disc brakes | |
Open operator station. Oliver Continental cab optional. | |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | lower-link draft sensing |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
1000 | |
540/1000 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 99 inches
251 cm |
Weight | 7000 lbs
3175 kg |
Front tire | 6.00-16 |
Rear tire | 15.5-38 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Farm Loaders published in 1969, by Oliver |
Engine
Engine options | |
|---|---|
Oliver 3.8L 6-cyl diesel | |
Oliver 3.8L 6-cyl gasoline | |
Oliver 3.8L 6-cyl LP-gas |
Engine Detail — 232 ci / 3.8 L Diesel
Manufacturer | Oliver |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 232 ci
3.8 L |
Bore/Stroke | 3.625x3.75 inches
92 x 95 mm |
Air cleaner | dry |
Compression | 16.5:1 |
Rated RPM | 2200 |
Starter volts | 12 |
Oil capacity | 5 qts
4.7 L |
Coolant capacity | 20 qts
18.9 L |
Engine Detail — 232 ci / 3.8 L Gasoline
Manufacturer | Oliver |
Fuel Type | Gasoline |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 232 ci
3.8 L |
Bore/Stroke | 3.625x3.75 inches
92 x 95 mm |
Air cleaner | dry |
Compression | 8:1 |
Rated RPM | 2200 |
Starter volts | 12 |
Oil capacity | 5 qts
4.7 L |
Coolant capacity | 20 qts
18.9 L |
Engine Detail — 232 ci / 3.8 L
Manufacturer | Oliver |
Configuration | 6-cylinder, liquid-cooled |
LP-gas | |
Displacement | 232 ci
3.8 L |
Bore/Stroke | 3.625x3.75 inches
92 x 95 mm |
Air cleaner | dry |
Compression | 8.75:1 |
Rated RPM | 2200 |
Starter volts | 12 |
Oil capacity | 5 qts
4.7 L |
Coolant capacity | 20 qts
18.9 L |
Transmission
Transmission options | |
|---|---|
12-speed partial power shift | |
6-speed unsynchronized gear |

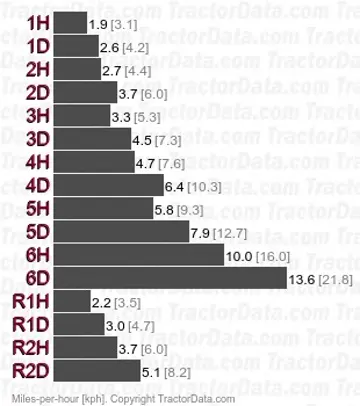

Transmission — Hydra-Power
Transmission | Hydra-Power |
Type | partial power shift |
Gears | 12 forward and 4 reverse |
Clutch | 279.4mm dry disc |
Oil capacity | 32 qts
30.3 L |
The Hydra-Power transmission provides a two-speed power shift between direct-drive and the lower Hydra-Power range. | |
 | |
Transmission — 6 forward and 2 reverse unsynchronized gear
Type | unsynchronized gear |
Gears | 6 forward and 2 reverse |
Clutch | 279.4mm dry disc |
Oil capacity | 32 qts
30.3 L |
 | |
Dimensions
Oliver 1550 Tires | |
|---|---|
Ag front | 6.00-16 |
Ag rear | 15.5-38 |
Dimensions | |
|---|---|
Wheelbase | 99 inches
251 cm |
Length | 154.6 inches
392 cm |
Width | 81.5 inches
207 cm |
Height (exhaust) | 97.625 inches
247 cm |
Operating weight | 7000 lbs
3175 kg |
Ballasted weight | 8730 lbs
3959 kg |
Rear tread | 55 to 90.9 inches
139 to 230 cm |
Tests
Tractor Tests | |
|---|---|
NTTL 943: diesel Hydra-Power 2WD | |
NTTL 944: gasoline Hydra-Power 2WD |
Nebraska Tractor Test 943 | |
|---|---|
Diesel Hydra-Power 2WD
June 8 - 15, 1966
Link: Nebraska Tractor Test 943 file | |
PTO performance | |
Power at rated engine speed | 53.50 hp
39.9 kW |
Fuel use | 4.3 gal/hour
16.3 l/hour |
Drawbar performance | |
Max power | 45.7 hp
34.1 kW |
Fuel use | 4.4 gal/hour
16.7 l/hour |
Gear 4-Hydra used for power test. | |
Max pull | 6,636 lbs
3010 kg |
Gear 2-Hydra used for pull test. | |
Nebraska Tractor Test 944 | |
|---|---|
Gasoline Hydra-Power 2WD
June 8 - 16, 1966
Link: Nebraska Tractor Test 944 file | |
PTO performance | |
Power at rated engine speed | 53.3 hp
39.7 kW |
Fuel use | 4.9 gal/hour
18.5 l/hour |
Drawbar performance | |
Max power | 45.4 hp
33.9 kW |
Fuel use | 4.9 gal/hour
18.5 l/hour |
Gear 4-Hydra used for power test. | |
Max pull | 6,799 lbs
3084 kg |
Gear 2-Hydra used for pull test. | |
Photos

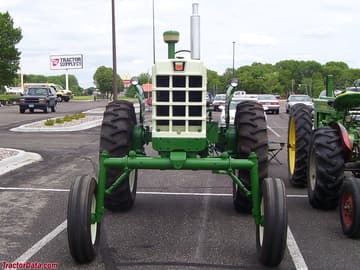

Oliver 1550 High-Crop
Oliver 1550 High-Crop
Oliver 1550 High-Crop
Oliver 1550 High-Crop
Oliver 1550 Row Crop Utility
