Page 12RY
The Page 12RY is a tractor produced by Page Lawn Tractors. It is equipped with a 221 cc 13.5 ci engine. The listed engine power is Gasoline (listed): 5 hp / 3.7 kW. Transmission: 3 forward and 1 reverse. Operating weight: 628 lbs 284 kg.
Engine Power
Gasoline (listed): 5 hp / 3.7 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Operating Weight
628 lbs
284 kg
Overview
 | 1958
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Page (a part of Pioneer Manufacturing) |
Garden tractor | |
Built in Milwaukee, Wisconsin, USA | |
Page 12RY Engine | |
|---|---|
5HP Wisconsin 221cc 1-cyl gasoline | |
Engine details ...  |
Page 12RY Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Final drives | spur gear |
Manual steering | |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Wheelbase | 50 inches
127 cm |
Weight | 628 lbs
284 kg |
Full dimensions and tires ...  | |
Engine
Engine Detail — 221 cc / 13.5 ci Gasoline
Manufacturer | Wisconsin ABN |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 221 cc
13.5 ci |
Bore/Stroke | 2.50x2.75 inches
64 x 70 mm |
Power | 5 hp
3.7 kW |
Rated RPM | 3600 |
Starter type | manual recoil |
electric OptOptional |
Transmission
Transmission — 3 forward and 1 reverse shaft-driven gear
Type | shaft-driven gear |
Gears | 3 forward and 1 reverse |
Clutch | 165.1mm dry disc |
Dimensions
Page 12RY Tires | |
|---|---|
Ag front | 4x8 |
Ag rear | 6x16 |
Dimensions | |
|---|---|
Wheelbase | 50 inches
127 cm |
Length | 70 inches
177 cm |
Width | 34 inches
86 cm |
Height | 48 inches
121 cm |
Weight | 628 lbs
284 kg |
Attachments
26" Mower deck | |
|---|---|
Type | mid-mount Page A399 |
1-blade | |
Cutting width | 26 inches
66 cm |
Cut height | 2.5 to 6 inch
6 to 15 cm |
Photos

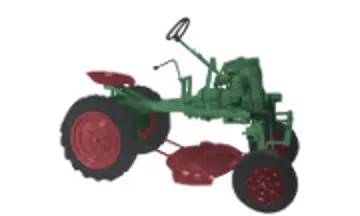

Page 12RY tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Page Lawn Tractors Page 12RY.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Page Lawn Tractors Page 12RY Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Page Lawn Tractors Page 12RY.
Converted Equivalents:
Horsepower (HP)5 hp
Kilowatts (kW)3.7 kW
Metric Horsepower (PS / CV)5.1 PS
