Page 20RG
The Page 20RG is a tractor produced by Page Lawn Tractors. It is equipped with a 550 cc 33.6 ci engine. The listed engine power is Gasoline (listed): 12.5 hp / 9.3 kW. Transmission: 3 forward and 1 reverse. Operating weight: 890 lbs 403 kg.
Engine Power
Gasoline (listed): 12.5 hp / 9.3 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Operating Weight
890 lbs
403 kg
Overview
 | 1962 - 1963
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Page (a part of Pioneer Manufacturing) |
Garden tractor | |
Built in Richfield, Wisconsin, USA | |
Page 20RG Engine | |
|---|---|
12.5HP Kohler 550cc 1-cyl gasoline | |
Engine details ...  |
Page 20RG Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Final drives | spur gear |
Manual steering | |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Weight | 890 lbs
403 kg |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Page published in 1963, by Pioneer Manufacturing |
Engine
Engine Detail — 550 cc / 33.6 ci Gasoline
Manufacturer | Kohler K331 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 550 cc
33.6 ci |
Bore/Stroke | 3.625x3.25 inches
92 x 83 mm |
Power | 12.5 hp
9.3 kW |
Rated RPM | 3200 |
Starter type | manual recoil |
electric OptOptional |
Transmission
Transmission — 3 forward and 1 reverse shaft-driven gear
Type | shaft-driven gear |
Gears | 3 forward and 1 reverse |
Clutch | 165.1mm dry disc |
Dimensions
Page 20RG Tires | |
|---|---|
Ag front | 4x8 |
Ag rear | 8x16 |
Dimensions | |
|---|---|
Length | 81 inches
205 cm |
Width | 41 inches
104 cm |
Height | 44 inches
111 cm |
Weight | 890 lbs
403 kg |
Clearance (rear axle) | 16 inches
40 cm |
Rear tread | 26 to 41 inches
66 to 104 cm |
Attachments
Attachment overview | |
|---|---|
32" mid-mount mower deck | |
48" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

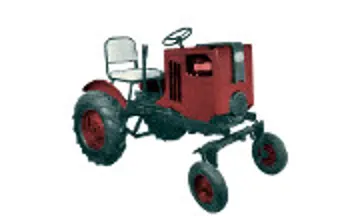

Page 20RG tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Page Lawn Tractors Page 20RG.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Page Lawn Tractors Page 20RG Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Page Lawn Tractors Page 20RG.
Converted Equivalents:
Horsepower (HP)12.5 hp
Kilowatts (kW)9.3 kW
Metric Horsepower (PS / CV)12.7 PS
