Page 11RG

The Page 11RG is a tractor produced by Page Lawn Tractors. It is equipped with a 244 cc 14.9 ci engine. The listed engine power is Gasoline (listed): 7 hp / 5.2 kW; Gasoline (listed): 7 hp / 5.2 kW; Gasoline (listed): 6 hp / 4.5 kW. Transmission: 3 forward and 1 reverse. Operating weight: 600 lbs 272 kg.

Overview

	1958 - 1963 Garden tractor

Production
Manufacturer	Page (a part of Pioneer Manufacturing)
Garden tractor
Built in Richfield, Wisconsin, USA

Page 11RG Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Final drives	spur gear
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	45 inches 114 cm
Weight	600 lbs 272 kg
Full dimensions and tires ...

References
Red Book 1960 published by Implement & Tractor
Page published in 1963, by Pioneer Manufacturing

Engine

Engine options
7HP Kohler 277cc 1-cyl gasoline
7HP Briggs & Stratton 304cc 1-cyl gasoline
6HP Wisconsin 244cc 1-cyl gasoline

Engine Detail — 277 cc / 16.94 ci Gasoline

Manufacturer	Kohler K161
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	277 cc 16.94 ci
Bore/Stroke	2.875x2.50 inches 73 x 64 mm
Power	7 hp 5.2 kW
Rated RPM	3600
Starter type	manual recoil
	electric OptOptional

Engine Detail — 304 cc / 18.56 ci Gasoline

Manufacturer	Briggs & Stratton 19
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	304 cc 18.56 ci
Bore/Stroke	3.00x2.625 inches 76 x 67 mm
Power	7 hp 5.2 kW
Starter type	manual recoil
	electric OptOptional

Engine Detail — 244 cc / 14.9 ci Gasoline

Manufacturer	Wisconsin ACN
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	244 cc 14.9 ci
Bore/Stroke	2.625x2.75 inches 67 x 70 mm
Power	6 hp 4.5 kW
Starter type	manual recoil
	electric OptOptional

Transmission

Transmission — 3 forward and 1 reverse shaft-driven gear

Type	shaft-driven gear
Gears	3 forward and 1 reverse
Clutch	152.4mm dry disc

Dimensions

Page 11RG Tires
Ag front	4x8
Ag rear	6x12

Dimensions
Wheelbase	45 inches 114 cm
Length	76 inches 193 cm
Width	36 inches 91 cm
Height	36 inches 91 cm
Weight	600 lbs 272 kg
Clearance (rear axle)	12 inches 30 cm
Rear tread	22 to 36 inches 55 to 91 cm

Attachments

Attachment overview
32" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

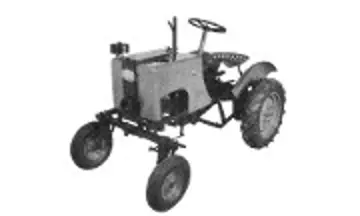

Page 11RG tractor photo
