Page 10RG
The Page 10RG is a tractor produced by Page Lawn Tractors. It is equipped with a 145 cc 8.86 ci engine. The listed engine power is Gasoline (listed): 4 hp / 3.0 kW. Transmission: 3 forward and 1 reverse.
Engine Power
Gasoline (listed): 4 hp / 3.0 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Overview
 | 1958 - 1960
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Page (a part of Pioneer Manufacturing) |
Garden tractor | |
Built in Richfield, Wisconsin, USA | |
Page 10RG Engine | |
|---|---|
4HP Kohler 145cc 1-cyl gasoline | |
Engine details ...  |
Page 10RG Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Final drives | spur gear |
Manual steering | |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Wheelbase | 44 inches
111 cm |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Red Book 1960 published by Implement & Tractor |

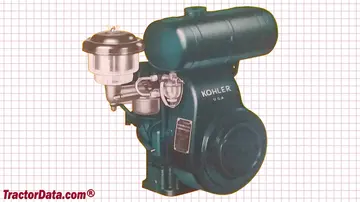

Engine
Engine Detail — 145 cc / 8.86 ci Gasoline
Manufacturer | Kohler K91 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 145 cc
8.86 ci |
Bore/Stroke | 2.375x2.00 inches
60 x 51 mm |
Power | 4 hp
3.0 kW |
Rated RPM | 3600 |
Starter type | manual recoil |
electric OptOptional |
Page 10RG Engine | |
|---|---|
 |
Transmission
Transmission — 3 forward and 1 reverse shaft-driven gear
Type | shaft-driven gear |
Gears | 3 forward and 1 reverse |
Dimensions
Page 10RG Tires | |
|---|---|
Ag front | 3x8 |
Ag rear | 4x12 |
Dimensions | |
|---|---|
Wheelbase | 44 inches
111 cm |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Page Lawn Tractors Page 10RG.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Page Lawn Tractors Page 10RG Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Page Lawn Tractors Page 10RG.
Converted Equivalents:
Horsepower (HP)4 hp
Kilowatts (kW)3 kW
Metric Horsepower (PS / CV)4.1 PS
