Power King 1620HV

The Power King 1620HV is a tractor produced by Power King Lawn Tractors. It is equipped with a 622 cc 38 ci engine. The listed engine power is Gasoline (listed): 20 hp / 14.9 kW. Transmission: infinite forward and reverse. Operating weight: 1100 lbs 498 kg.

Engine Power

Gasoline (listed): 20 hp / 14.9 kW

Fuel & Capacities

8 gal 30.3 L

Transmission

infinite forward and reverse

Operating Weight

1100 lbs 498 kg

Overview

	1994 - 1999 1600 SeriesGarden tractor 1600 Series Garden tractor

Production
Manufacturer	Power King
Garden tractor
Built in Beaver Dam, Wisconsin, USA

Power King 1620HV Engine
20HP Kohler 622cc 2-cyl gasoline
Fuel tank	8 gal 30.3 L
Engine details ...

Power King 1620HV Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	power
Open operator station.

Tractor hitch
Rear Type	0 (optional)

Power Take-off (PTO)
Rear PTO	independent (optional)
Rear PTO Type	2000
Front PTO	independent
Clutch	electro-magnetic

Dimensions & Tires
Wheelbase	57 inches 144 cm
Weight	1100 lbs 498 kg
Front tire	20/8.0x10
Rear tire	31.3/8.0x16
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	15
Battery CCA	335
Battery volts	12

Engine

Engine Detail — 622 cc / 38 ci Gasoline

Manufacturer	Kohler Command CH20
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft V-Twin
Displacement	622 cc 38 ci
Bore/Stroke	3.03x2.64 inches 77 x 67 mm
Power	20 hp 14.9 kW
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L

Transmission

Transmission — infinite forward and reverse shaft-driven hydrostatic

Type	shaft-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Power King 1620HV Tires
Ag front	21.2/4.0x12
Ag rear	31.8/8.0x16
Lawn/turf front	20/8.0x10
Lawn/turf rear	31.3/8.0x16

Dimensions
Wheelbase	57 inches 144 cm
Length	83 inches 210 cm
Width	44 inches 111 cm
Height (steering wheel)	50 inches 127 cm
Weight	1100 lbs 498 kg
Ground clearance	15.75 inches 40 cm

Attachments

Attachment overview
48" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
Front-end loader
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

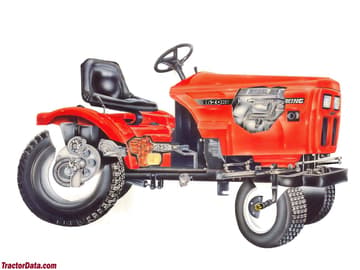

Cut-away view of the Power King 1620HV.

Recommended Implements & Sizing Guide

Engineering recommendations for Power King Lawn Tractors Power King 1620HV based on its 20 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Power King Lawn Tractors Power King 1620HV.

Estimated Continuous Field Runtime: 7.7 hrs

Approximately 7.7 hours of continuous field operation at ~75% rated power on a full tank (8 gal / 30.3 L).

Estimated 75% Load Fuel Burn~1 gal/hr (3.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Power King Lawn Tractors Power King 1620HV Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Power King Lawn Tractors Power King 1620HV.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)20 hp

Kilowatts (kW)14.9 kW

Metric Horsepower (PS / CV)20.3 PS
