Roper T632 RT-16T
The Roper T632 RT-16T is a tractor produced by Roper Lawn Tractors. It is equipped with a 660 cc 40.3 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: Roper.
Overview
 | 1973 - 1983
Model year 1973-19771978-1983
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Roper |
Garden tractor | |
Built in Orangeburg, South Carolina, USA | |
Variants | |
|---|---|
T632 | gear |
T633 | hydro |
Roper T632 Engine | |
|---|---|
16HP Onan 660cc 2-cyl gasoline | |
Fuel tank | 2.5 gal
9.5 L |
Engine details ...  | |
Roper T632 Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Tractor hitch | |
|---|---|
Type | Roper Tri-Hitch |
Dimensions & Tires | |
|---|---|
Wheelbase | 43.375 inches
110 cm |
Front tire | 16x6.50-8 |
Rear tire | 23x9.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Lawn and Garden Power Equipment published in 1973, by Roper | |
Ride the Big Red Roper published in 1974 | |
Roper '76 published in 1976 | |
Garden Tractors published in 1977, by Roper | |
Garden Tractors published in 1978, by Roper | |
Parts and "We Care" Service published in 1986 | |
Service Manual Tractors & Attachments published in 1973 |
Engine
Engine Detail — 660 cc / 40.3 ci Gasoline
Manufacturer | Onan BF-MS |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft opposed twin |
Displacement | 660 cc
40.3 ci |
Bore/Stroke | 3.125x2.625 inches
79 x 67 mm |
Power (gross) | 16 hp
11.9 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Roper
Transmission | Roper |
Type | belt-driven gear |
Gears | 6 forward and 2 reverse |
 | |
Dimensions
Roper T632 Tires | |
|---|---|
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x9.50-12 |
Dimensions | |
|---|---|
Wheelbase | 43.375 inches
110 cm |
Length | 65.125 inches
165 cm |
Width | 39.5 inches
100 cm |
Height | 36.5 inches
92 cm |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
48" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

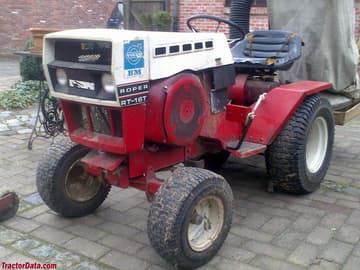

Roper RT-16T sold by BM-Volvo in Europe.
Roper RT-16T with mower deck.
Roper RT-16T with mower deck.
Roper RT-16T with mower deck.
Roper RT-16T with mower deck.
Recommended Implements & Sizing Guide
Engineering recommendations for Roper Lawn Tractors Roper T632 RT-16T based on its 16 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Roper Lawn Tractors Roper T632 RT-16T.
Estimated Continuous Field Runtime: 3 hrs
Approximately 3 hours of continuous field operation at ~75% rated power on a full tank (2.5 gal / 9.5 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Roper Lawn Tractors Roper T632 RT-16T Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Roper Lawn Tractors Roper T632 RT-16T.
Converted Equivalents:
Direct Competitor Comparison
Compare Roper T632 RT-16T against same-era industry alternatives in the same horsepower class.
Roper T632 RT-16T
