Roper T633 RT-16T Hydro

The Roper T633 RT-16T Hydro is a tractor produced by Roper Lawn Tractors. It is equipped with a 660 cc 40.3 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: infinite forward and reverse.

Engine Power

Gasoline (gross): 16 hp / 11.9 kW

Fuel & Capacities

2.5 gal 9.5 L

Transmission

infinite forward and reverse

Overview

	1974 - 1978 Model year 1974-19751976-19771978 Garden tractor

Production
Manufacturer	Roper
Garden tractor
Built in Orangeburg, South Carolina, USA

Variants
T632	gear
T633	hydro

Roper T633 Engine
16HP Onan 660cc 2-cyl gasoline
Fuel tank	2.5 gal 9.5 L
Engine details ...

Roper T633 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

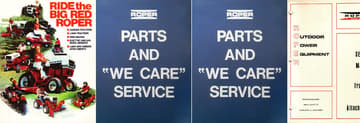

References

Ride the Big Red Roper published in 1974
Parts and "We Care" Service published in 1986
Service Manual Tractors & Attachments published in 1973

Engine

Engine Detail — 660 cc / 40.3 ci Gasoline

Manufacturer	Onan BF-MS
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft opposed twin
Displacement	660 cc 40.3 ci
Bore/Stroke	3.125x2.625 inches 79 x 67 mm
Power (gross)	16 hp 11.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Roper T633 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

Roper T633 RT-16T Hydro tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Roper Lawn Tractors Roper T633 RT-16T Hydro based on its 16 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Roper Lawn Tractors Roper T633 RT-16T Hydro.

Estimated Continuous Field Runtime: 3 hrs

Approximately 3 hours of continuous field operation at ~75% rated power on a full tank (2.5 gal / 9.5 L).

Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Roper Lawn Tractors Roper T633 RT-16T Hydro Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Roper Lawn Tractors Roper T633 RT-16T Hydro.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)16 hp

Kilowatts (kW)11.9 kW

Metric Horsepower (PS / CV)16.2 PS
