Sabre 1642HV
The Sabre 1642HV is a tractor produced by Sabre Lawn Tractors. It is equipped with a 480 cc 29.3 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: Tuff Torq K51. Operating weight: 422 lbs 191 kg.
Engine Power
Gasoline (gross): 16 hp / 11.9 kW
Fuel & Capacities
1.25 gal
4.7 L
Transmission
Tuff Torq K51
Operating Weight
422 lbs
191 kg
Overview
 | 1998
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Sabre (a part of John Deere) |
Lawn tractor | |
Built in Greeneville, Tennessee, USA | |
Original price was $2,299 in 1998 | |
Sabre 1642HV Engine | |
|---|---|
16HP Briggs & Stratton 480cc 2-cyl gasoline | |
Fuel tank | 1.25 gal
4.7 L |
Engine details ...  | |
Sabre 1642HV Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Wheelbase | 44.7 inches
113 cm |
Weight | 422 lbs
191 kg |
Front tire | 15x6-6 |
Rear tire | 20x8-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 3 |
Battery CCA | 230 |
Battery volts | 12 |
Battery Group | U1 |
References | |
|---|---|
 | |
Lawn and Garden Product Information Handbook published in 1998, by John Deere | |
Lawn & Grounds Care Sales Manual published in 1997, by John Deere* | |
Operator's Manual Sabre Lawn Tractors (OMGX10226) published in 1997 | |
Operator's Manual Sabre Lawn Tractors (OMGX10143) published in 1997 | |
*Publication contains known errors. |
Engine
Engine Detail — 480 cc / 29.3 ci Gasoline
Manufacturer | Briggs & Stratton 303777 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 480 cc
29.3 ci |
Bore/Stroke | 2.68x2.60 inches
68 x 66 mm |
Power (gross) | 16 hp
11.9 kW |
Air cleaner | paper and foam |
Idle RPM | 1400-3350 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Tuff Torq K51
Transmission | Tuff Torq K51 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Sabre 1642HV Tires | |
|---|---|
Lawn/turf front | 15x6-6 |
Lawn/turf rear | 20x8-8 |
Dimensions | |
|---|---|
Wheelbase | 44.7 inches
113 cm |
Length | 60 inches
152 cm |
Width | 36 inches
91 cm |
Height (steering wheel) | 38.6 inches
98 cm |
Weight | 422 lbs
191 kg |
Attachments
42" Mower deck | |
|---|---|
Type | mid-mount Sabre BG10109 |
2-blade with manual lift | |
Cutting width | 42 inches
106 cm |
Cut height | 1 to 4 inch
2 to 10 cm |
Photos

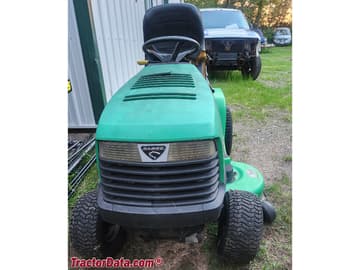

Sabre 1642 HV lawn tractor.
Recommended Implements & Sizing Guide
Engineering recommendations for Sabre Lawn Tractors Sabre 1642HV based on its 16 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Sabre Lawn Tractors Sabre 1642HV.
Estimated Continuous Field Runtime: 1.6 hrs
Approximately 1.6 hours of continuous field operation at ~75% rated power on a full tank (1.3 gal / 4.7 L).
Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Sabre Lawn Tractors Sabre 1642HV Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Sabre Lawn Tractors Sabre 1642HV.
Converted Equivalents:
Horsepower (HP)16 hp
Kilowatts (kW)11.9 kW
Metric Horsepower (PS / CV)16.2 PS
Direct Competitor Comparison
Compare Sabre 1642HV against same-era industry alternatives in the same horsepower class.
Current Model
Sabre Lawn Tractors
Sabre 1642HV
Engine Power:Gasoline (gross): 16 hp / 11.9 kW
★ Baseline Reference
