Sabre 1742HS
The Sabre 1742HS is a tractor produced by Sabre Lawn Tractors. It is equipped with a 465 cc 28.4 ci engine. The rated power output is 17 hp 12.7 kW. Transmission: Tuff Torq K51. Operating weight: 422 lbs 191 kg.
Engine Power
17 hp
12.7 kW
Fuel & Capacities
1.25 gal
4.7 L
Transmission
Tuff Torq K51
Operating Weight
422 lbs
191 kg
Sabre Lawn Tractors Sabre 1742HS Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1998 - 2001
Lawn tractor |
|---|---|
1998 - 2001 | |
Lawn tractor | |
Production | |
|---|---|
Manufacturer | Sabre (a part of John Deere) |
Lawn tractor | |
Built in Greeneville, Tennessee, USA | |
Original price was $1,849 in 1999 | |
Sabre 1742HS Engine | |
|---|---|
17HP Briggs & Stratton 465cc 1-cyl gasoline | |
Fuel tank | 1.25 gal
4.7 L |
Engine details ...  | |
Sabre 1742HS Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Wheelbase | 44.7 inches
113 cm |
Weight | 422 lbs
191 kg |
Front tire | 15x6.5-6 |
Rear tire | 20x8-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Lawn and Garden Product Information Handbook published in 2000, by John Deere | |
Lawn and Garden Product Information Handbook published in 2001, by John Deere | |
Grounds Care Equipment Purchasing Guide published in 2000, by John Deere | |
Grounds Care Equipment Purchasing Guide published in 2001, by John Deere | |
Operator's Manual Sabre Lawn Tractors 1438GS, 1438HS, 1542HS, 1742GS, 1742HSS and 2046HS (OMGX10782) published in 2000 | |
Sabre Lawn Tractors - Yard Tractors - Garden Tractors published in 2000, by John Deere | |
Sabre Tractors published in 2001, by John Deere |
Engine
Engine Detail — 465 cc / 28.4 ci Gasoline
Manufacturer | Briggs & Stratton Intek |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 465 cc
28.4 ci |
Bore/Stroke | 3.44x3.06 inches
87 x 78 mm |
Power (gross) | 17 hp
12.7 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Tuff Torq K51
Transmission | Tuff Torq K51 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Sabre 1742HS Tires | |
|---|---|
Lawn/turf front | 15x6.5-6 |
Lawn/turf rear | 20x8-8 |
Dimensions | |
|---|---|
Wheelbase | 44.7 inches
113 cm |
Length | 60 inches
152 cm |
Width | 36 inches
91 cm |
Height (steering wheel) | 38.6 inches
98 cm |
Weight | 422 lbs
191 kg |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
Snowblower | |
Blade |
42" Mower deck | |
|---|---|
Type | mid-mount Sabre |
2-blade with manual lift | |
Cutting width | 42 inches
106 cm |
Photos

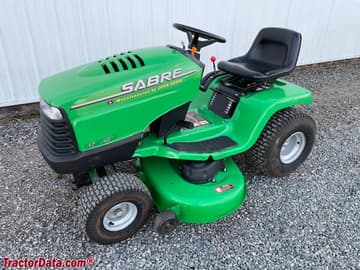

Sabre 1742HS
