Sabre 2554HV

The Sabre 2554HV is a tractor produced by Sabre Lawn Tractors. It is equipped with a 722 cc 44.1 ci engine. The rated power output is 25 hp 18.6 kW. Transmission: Tuff Torq K66C. Operating weight: 606 lbs 274 kg.

Overview

	1998 - 2002 Garden SeriesGarden tractor
1998 - 2002
Garden Series
Garden tractor

Production
Manufacturer	Sabre (a part of John Deere)
Garden tractor
Factories	Horicon, Wisconsin, USA
	Greeneville, Tennessee, USA
Original price was $4,499 in 1999

Sabre 2554HV Engine
25HP Kohler 722cc 2-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Sabre 2554HV Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	48.5 inches 123 cm
Weight	606 lbs 274 kg
Front tire	16x7.50-8
Rear tire	24x12.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery CCA	340
Battery volts	12
Battery Group	BCI U1

References
Lawn and Garden Product Information Handbook published in 1998, by John Deere
Lawn and Garden Product Information Handbook published in 2000, by John Deere
Lawn and Garden Product Information Handbook published in 2001, by John Deere
Lawn and Garden Product Information Handbook published in 2002, by John Deere
Commercial & Consumer Equipment Sales Manual published in 1999, by John Deere
Grounds Care Equipment Purchasing Guide published in 1999, by John Deere
Grounds Care Equipment Purchasing Guide published in 2000, by John Deere
Grounds Care Equipment Purchasing Guide published in 2001, by John Deere
Sabre Lawn Tractors - Yard Tractors - Garden Tractors published in 1999, by John Deere
Sabre Lawn Tractors - Yard Tractors - Garden Tractors published in 2000, by John Deere
Sabre Tractors published in 2001, by John Deere

Engine

Engine Detail — 722 cc / 44.1 ci Gasoline

Manufacturer	Kohler CV25S
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled V-twin OHV
Displacement	722 cc 44.1 ci
Power (gross)	25 hp 18.6 kW
Air cleaner	dry with foam precleaner
Idle RPM	1550-3550
Starter volts	12
Oil capacity	2.1 qts 2.0 L
Sparkplug gap	0.030 inches 0.762 mm

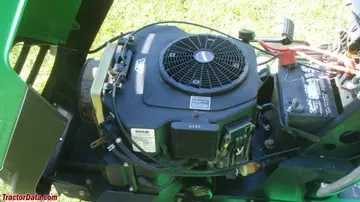

Sabre 2554HV Engine
Image courtesy of Pat McCormack

Transmission

Transmission — uff Torq K65

Transmission	uff Torq K65
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	3.4 qts 3.2 L
Oil change	fill as needed
Tractors built prior to the 2000 model year had sealed transmissions which could not be refilled.

Transmission — Tuff Torq K66C

Transmission	Tuff Torq K66C
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	3.4 qts 3.2 L
Oil change	fill as needed
K66 used in the 2002 model year.

Dimensions

Sabre 2554HV Tires
Lawn/turf front	16x7.50-8
Lawn/turf rear	24x12.50-12

Dimensions
Wheelbase	48.5 inches 123 cm
Length	72.3 inches 183 cm
Width	41.1 inches 104 cm
Height	45.6 inches 115 cm
Weight	606 lbs 274 kg

Attachments

Attachment overview
54" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

54" Mower deck
Type	mid-mount Sabre
	3-blade with manual lift
Cutting width	54 inches 137 cm
Cut height	1 to 4 inch 2 to 10 cm

Photos

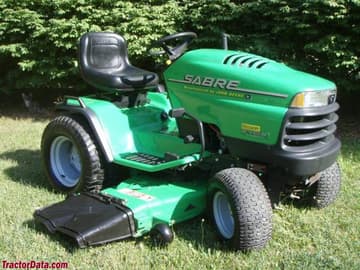

Sabre 2554HV

Sabre 2554HV

Sabre 2554HV
