SAME Delfino 35
The SAME Delfino 35 is a tractor produced by Same. It is equipped with a 110.4 ci 1.8 L engine. The listed engine power is Diesel (listed): 33.5 hp / 25.0 kW. Transmission: 12 forward and 4 reverse. Operating weight: 3086 to 3417 pounds.
Engine Power
Diesel (listed): 33.5 hp / 25.0 kW
Fuel & Capacities
6.6 gal
25.0 L
Transmission
12 forward and 4 reverse
Operating Weight
3086 to 3417 pounds
Overview
 | 1972 - 1995
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | SAME |
Utility tractor | |
SAME Delfino 35 Engine | |
|---|---|
SAME 1.8L 2-cyl diesel | |
Fuel tank | 6.6 gal
25.0 L |
Engine details ...  | |
SAME Delfino 35 Power | |
|---|---|
Engine | 33.5 hp
25.0 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | mechanical rear |
Steering | manual |
Steering | power *Optional with four-wheel drive. |
Dry disc brakes | |
Open operator station. Four-post ROPS available. | |
Hydraulics | |
|---|---|
Pressure | 2133 psi
147.1 bar |
Pump flow | 3.4 gpm
12.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift | 2954 lbs
1339 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 67.3 inches
170 cm |
Weight | 3086 to 3417 pounds |
Front tire | 6.00-16 |
2WD Rear tire | 11.2/10-28 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Delfino 35 published in 1980, by SAME | |
Delfino 35 published in 1985, by SAME | |
Delfino 35 published in 1991, by SAME | |
Delfino 35 Orchard Version published in 1980, by SAME |
Engine
Engine Detail — 110.4 ci / 1.8 L Diesel
Manufacturer | SAME 982 L |
Fuel Type | Diesel |
Configuration | 2-cylinder, air-cooled inline |
Displacement | 110.4 ci
1.8 L |
Bore/Stroke | 3.86x4.72 inches
98 x 120 mm |
Power | 33.5 hp
25.0 kW |
Fuel system | direct injection |
Air cleaner | dry |
Compression | 17:1 |
Rated RPM | 2200 |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
6-speed | |
12-speed creeper |
Transmission — 6 forward and 2 reverse
Gears | 6 forward and 2 reverse |
Clutch | dry disc |
With 11.2/10-28 rear tires. | |
 | |
Transmission | |
Type | creeper |
Gears | 12 forward and 4 reverse |
 | |
Dimensions
SAME Delfino 35 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 6.00-16. Rear: 11.2/10-28 |
4WD Standard tires (ag) | Front: 7.50-18. Rear: 11.2/10-28 |
2WD Optional tires (ag) | Front: 5.00-15. Rear: 11.2/10-24 |
2WD Optional tires (ag) | Front: 6.00-16. Rear: 12.4/11-28 |
4WD Optional tires (ag) | Front: 7.50-16. Rear: 11.2/10-24 |
Dimensions | |
|---|---|
Wheelbase | 67.3 inches
170 cm |
2WD Length | 106.1 inches
269 cm |
4WD Length | 106.7 inches
271 cm |
Width | 58.1 inches*Minimum width.
147 cm |
Height (hood) | 48.8 inches
123 cm |
Height (ROPS) | 85.6 inches
217 cm |
2WD Weight | 3086 lbs
1399 kg |
4WD Weight | 3417 lbs
1549 kg |
2WD Ground clearance | 13.8 inches
35 cm |
4WD Ground clearance | 10.2 inches
25 cm |
2WD Front tread | 48.8 to 72.4 inches
123 to 183 cm |
4WD Front tread | 47.2 inches
119 cm |
Rear tread | 47.2 to 70.9 inches
119 to 180 cm |
Photos

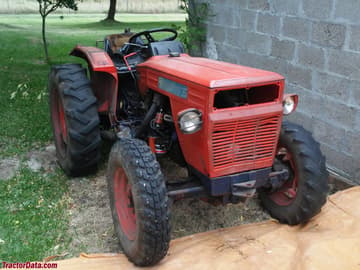

SAME Delfino 35
SAME Delfino 35
Recommended Implements & Sizing Guide
Engineering recommendations for Same Delfino 35 based on its 33.5 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Same Delfino 35.
Estimated Continuous Field Runtime: 3.8 hrs
Approximately 3.8 hours of continuous field operation at ~75% rated power on a full tank (6.6 gal / 25 L).
Estimated 75% Load Fuel Burn~1.7 gal/hr (6.6 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Same Delfino 35 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Same Delfino 35.
Converted Equivalents:
Horsepower (HP)33.5 hp
Kilowatts (kW)25 kW
Metric Horsepower (PS / CV)34 PS
Direct Competitor Comparison
Compare SAME Delfino 35 against same-era industry alternatives in the same horsepower class.
Current Model
Same
SAME Delfino 35
Engine Power:Diesel (listed): 33.5 hp / 25.0 kW
★ Baseline Reference
