SAME Jaguar 100

The SAME Jaguar 100 is a tractor produced by Same. It is equipped with a 316.88 ci 5.2 L engine. The rated power output is 98 hp 73.1 kW. Transmission: 20 forward and 6 reverse. Operating weight: 7590 to 8668 pounds.

Overview

	1982 - 1984 Row-Crop tractor
1982 - 1984
Row-Crop tractor

Production
Manufacturer	SAME
Row-Crop tractor

SAME Jaguar 100 Engine
SAME 5.2L 5-cyl diesel
Fuel tank	31.7 gal 120.0 L
Engine details ...

SAME Jaguar 100 Power
Engine	98 hp 73.1 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Hydraulic wet disc brakes
Four-post ROPS. Cab optional with available air-conditioning.

Hydraulics
Type	open center
Pressure	2482 psi 171.1 bar
Pump flow	9.25 gpm 35.0 lpm
	15.85 gpmOptOptional 60.0 lpm

Tractor hitch
Control	position and draft control
Rear lift	9347.5 lbs 4240 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
2WD Wheelbase	99.4 inches 252 cm
4WD Wheelbase	99.6 inches 252 cm
Weight	7590 to 8668 pounds
Front tire	7.50-20
2WD Rear tire	18.4/15-34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References
Minitauro 60 published in 1972, by SAME

Engine

Engine Detail — 316.88 ci / 5.2 L Diesel

Manufacturer	SAME 1055 P
Fuel Type	Diesel
Configuration	5-cylinder, air-cooled
Displacement	316.88 ci 5.2 L
Bore/Stroke	4.13x4.72 inches 105 x 120 mm
Power	98 hp 73.1 kW
Fuel system	direct injection
Air cleaner	dry
Compression	17:1
Rated RPM	2200
Starter volts	12

Transmission

Transmission options
12-speed synchronized
20-speed

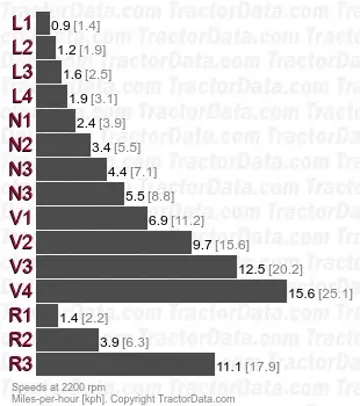

Transmission — 12 forward and 3 reverse synchronized

Type	synchronized
Gears	12 forward and 3 reverse
Clutch	dry disc
With 18.4/15-34 rear tires and 25 kph option.

Transmission — 20 forward and 6 reverse

Gears

20 forward and 6 reverse

Dimensions

SAME Jaguar 100 Tires
2WD Standard tires (ag)	Front: 7.50-20. Rear: 18.4/15-34
4WD Standard tires (ag)	Front: 16.9/14-24. Rear: 18.4/15-34

Dimensions
2WD Wheelbase	99.4 inches 252 cm
4WD Wheelbase	99.6 inches 252 cm
2WD Length	161.4 inches 409 cm
4WD Length	166.1 inches 421 cm
Width	82.7 inches 210 cm
Ground clearance	17.9 inches 45 cm
2WD Front tread	66.9 to 905 inches 169 to 2298 cm
4WD Front tread	66.9 to 77.9 inches 169 to 197 cm
Rear tread	64.2 to 93.8 inches 163 to 238 cm

SAME Jaguar 100 Weight
2WD ROPS	7590 lbs 3442 kg
4WD ROPS	8316 lbs 3772 kg
2WD Cab	7942 lbs 3602 kg
4WD Cab	8668 lbs 3931 kg

SAME Jaguar 100 Height
Hood	64.2 inches 163 cm
ROPS	106.7 inches 271 cm
Cab	109.8 inches 278 cm

Photos

SAME Jaguar 100 tractor photo
