SAME Titan 190
The SAME Titan 190 is a tractor produced by Same. It is equipped with a 366.1 ci 6.0 L engine. The rated power output is 189 hp 140.9 kW. Transmission: 27 forward and reverse. Operating weight: 13671 lbs 6201 kg.
Engine Power
189 hp
140.9 kW
Fuel & Capacities
60.8 gal
230.1 L
Transmission
27 forward and reverse
Operating Weight
13671 lbs
6201 kg
Same Titan 190 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1992 - 2001
Titan SeriesRow-Crop tractor |
|---|---|
1992 - 2001 | |
Titan Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | SAME |
Row-Crop tractor | |
SAME Titan 190 Engine | |
|---|---|
SAME 6.0L 6-cyl diesel | |
Fuel tank | 60.8 gal
230.1 L |
95.1 galOptOptional
360.0 L | |
Engine details ...  | |
SAME Titan 190 Transmission | |
|---|---|
27-speed power shift | |
Transmission details ...  |
SAME Titan 190 Power | |
|---|---|
Engine | 189 hp
140.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | electro-hydraulic front and rear |
Power steering | |
Hydraulic wet disc brakes | |
Trailer brakes | hydraulic |
Cab standard with air-conditioning. | |
Hydraulics | |
|---|---|
Pump flow | 15.9 gpm
60.2 lpm |
Tractor hitch | |
|---|---|
Rear lift | 12787 lbs
5800 kg |
Front lift | 5071 lbs
2300 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet disc |
Rear PTO Type | 750/1000 |
Front PTO | independent OptOptional |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 112.2 inches
284 cm |
Weight | 13671 lbs
6201 kg |
Front tire | 480/70R30 |
Rear tire | 580/70R38 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Titan 190 published in 1999, by SAME | |
Titan 145-160-190 published in 1996, by SAME |
Engine
Engine Detail — 366.1 ci / 6.0 L Diesel
Manufacturer | SAME 1000.6 WTIR |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 366.1 ci
6.0 L |
Bore/Stroke | 4.134x4.54 inches
105 x 115 mm |
Power | 189 hp
140.9 kW |
Rated RPM | 2350 |
Transmission
Transmission — 27 forward and reverse power shift
Type | power shift |
Gears | 27 forward and reverse |
Clutch | electro-hydraulic wet disc |

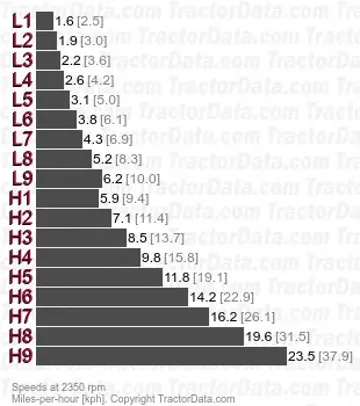

Nine gears in three ranges. | |
With 20.8R38 rear tires. Reverse speeds are 10% faster than forward. | |
 | |
Dimensions
SAME Titan 190 Tires | |
|---|---|
Standard tires (ag) | Front: 480/70R30. Rear: 580/70R38 |
Optional tires (ag) | Front: 16.9R30. Rear: 20.8R38 |
Front: 480/70R30. Rear: 650/75R34 | |
Dimensions | |
|---|---|
Wheelbase | 112.2 inches
284 cm |
Length | 187 inches
474 cm |
Width | 92.9 inches*Minimum width.
235 cm |
Height (hood) | 75.6 inches
192 cm |
Height (cab) | 114.2 inches
290 cm |
Weight | 13671 lbs
6201 kg |
Ground clearance | 20.3 inches
51 cm |
Front tread | 74.8 to 98.4 inches
189 to 249 cm |
Rear tread | 72.1 to 100.4 inches
183 to 255 cm |
Photos
SAME Titan 190, left side.
SAME Titan 190, front view.
