Simplicity 16LTH

The Simplicity 16LTH is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 480 cc 29.3 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: infinite forward and reverse. Operating weight: 115 lbs 52 kg.

Overview

	1990 - 1993 Broadmoor LT SeriesLawn tractor Broadmoor LT Series Lawn tractor

Production
Manufacturer	Simplicity
Lawn tractor
Built in Port Washington, Wisconsin, USA
Original price	$3,699 (1990 )
	$3,900 (1991 )
	$4,000 (1993 )

Variants
1616H	similar Deutz-Allis model

Simplicity 16LTH Engine
16HP Briggs & Stratton 480cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Simplicity 16LTH Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric
Mid PTO Type	pulley

Dimensions & Tires
Wheelbase	48 inches 121 cm
Weight	455 lbs 206 kg
Front tire	15x6.0-6
Rear tire	20x8.0-10
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	340
Battery volts	12

References
Operator's Manual Broadmoor Series (1709979) published in 1994
Outdoor Power Equipment published in 1990, by Simplicity
Outdoor Power Equipment published in 1992, by Simplicity
1990 Pocket Price List published in 1989, by Simplicity
1991 Pocket Price List published in 1990, by Simplicity
1993 Price List published in 1992, by Simplicity

Engine

Engine Detail — 480 cc / 29.3 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft
Displacement	480 cc 29.3 ci
Bore/Stroke	2.68x2.60 inches 68 x 66 mm
Power (gross)	16 hp 11.9 kW
Starter	electric
Starter volts	12
Oil capacity	1.75 qts 1.7 L

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	3.5 qts 3.3 L

Dimensions

Simplicity 16LTH Tires
Lawn/turf front	15x6.0-6
Lawn/turf rear	20x8.0-10

Dimensions
Wheelbase	48 inches 121 cm
Length	67 inches 170 cm
Width	35 inches 88 cm
Height (steering wheel)	40 inches 101 cm
Height (hood)	34 inches 86 cm
Weight	455 lbs*Tractor only 206 kg

Attachments

Attachment overview
44" mid-mount mower deck
Snowblower
Blade

44" Mower deck
Type	mid-mount Simplicity 169705
	3-blade
Cutting width	44 inches 111 cm
Weight	115 lbs 52 kg
Overall width	56 inches 142 cm

Photos

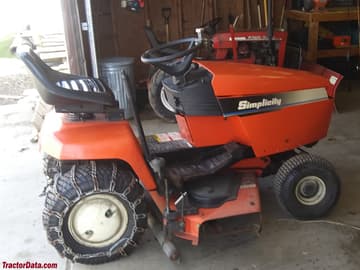

Simplicity 16LTH with mower deck.

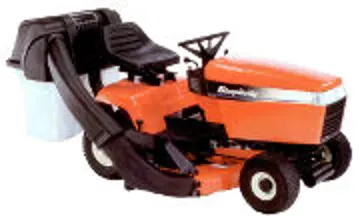

Simplicity 16LTH with mower deck.

Simplicity 16LTH with snowblower.
