Simplicity Baron 3414H 990980

The Simplicity Baron 3414H 990980 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 494 cc 30.16 ci engine. The listed engine power is Gasoline (listed): 13 hp / 9.7 kW. Transmission: infinite forward and reverse.

Overview

	1974 - 1975 3400 SeriesGarden tractor 3400 Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor
Built in Port Washington, Wisconsin, USA

Variants
3414S	shuttle
3414H	hydrostatic

Simplicity 3414H Engine
13HP Briggs & Stratton 494cc 1-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Simplicity 3414H Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	mechanical idler pulley

Dimensions & Tires
Wheelbase	48 inches 121 cm
Front tire	16x6.50-8
Rear tire	23x8.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Owner's Manual Baron 3414H Riding Tractor (178083) published in 1974
Tractors and Attachments published in 1974, by Simplicity

Engine

Engine Detail — 494 cc / 30.16 ci Gasoline

Manufacturer	Briggs & Stratton 302431
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	494 cc 30.16 ci
Bore/Stroke	3.25x3.4375 inches 83 x 87 mm
Power	13 hp 9.7 kW
Starter	electric
Starter volts	12
Sparkplug	Champion J-8
Sparkplug gap	0.030 inches 0.762 mm
Oil change	25 h

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity 3414H Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x8.50-12

Dimensions
Wheelbase	48 inches 121 cm
Length	67 inches 170 cm
Width	34.5 inches 87 cm
Height (steering wheel)	39.25 inches 99 cm

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

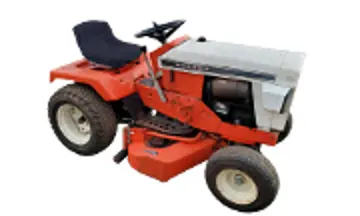

Simplicity Baron 3414H 990980 tractor photo
