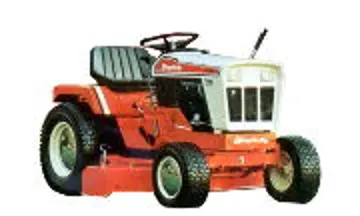

Simplicity Baron 7013

The Simplicity Baron 7013 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 494 cc 30.16 ci engine. The listed engine power is Gasoline (gross): 13 hp / 9.7 kW. Transmission: 4 forward and reverse. Operating weight: 814 lbs*Weight of tractor only. 369 kg.

Overview

	1976 - 1977 7000 SeriesGarden tractor 7000 Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor

Simplicity 7013 Engine
13HP Briggs & Stratton 494cc 1-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Simplicity 7013 Transmission
4-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	mechanical

Dimensions & Tires
Wheelbase	48.1 inches 122 cm
Weight	814 lbs 369 kg
Front tire	16-6.50x8
Rear tire	23-8.50x12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Garden Tractor Model 7013 published in 1963, by Simplicity
Lawn & Garden Power Equipment published in 1976, by Simplicity

Engine

Engine Detail — 494 cc / 30.16 ci Gasoline

Manufacturer	Briggs & Stratton 302431
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	494 cc 30.16 ci
Bore/Stroke	3.44x3.25 inches 87 x 83 mm
Power (gross)	13 hp 9.7 kW
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L

Transmission

Transmission — 4 forward and reverse belt-driven gear

Type	belt-driven gear
Gears	4 forward and reverse
Oil capacity	2.125 qts 2.0 L

Dimensions

Simplicity 7013 Tires
Lawn/turf front	16-6.50x8
Lawn/turf rear	23-8.50x12

Dimensions
Wheelbase	48.1 inches 122 cm
Length	67 inches 170 cm
Width	37.5 inches 95 cm
Height (steering wheel)	39.5 inches 100 cm
Height (hood)	35.5 inches 90 cm
Weight	814 lbs*Weight of tractor only. 369 kg
Ground clearance	8 inches 20 cm
Front tread	30 inches 76 cm
Rear tread	27 inches 68 cm

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

Cutaway diagram of the Simplicity 7013 Baron.
