Simplicity 3005 Wonder Boy
The Simplicity 3005 Wonder Boy is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 204 cc 12.5 ci engine. The listed engine power is Gasoline (listed): 5 hp / 3.7 kW. Transmission: 2 forward and 1 reverse. Operating weight: 268 lbs 121 kg.
Engine Power
Gasoline (listed): 5 hp / 3.7 kW
Fuel & Capacities
0.75 gal
2.8 L
Transmission
2 forward and 1 reverse
Operating Weight
268 lbs
121 kg
Overview
 | 1975 - 1978
Wonder Boy SeriesRiding lawn mower
Wonder Boy Series
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Simplicity (a part of Allis Chalmers) |
Riding lawn mower | |
Built in Port Washington, Wisconsin, USA | |
Original price was $895 in 1978 | |
Variants | |
|---|---|
405 | similar Allis Chalmers model |
Simplicity 3005 Wonder Boy Engine | |
|---|---|
5HP Briggs & Stratton 204cc 1-cyl gasoline | |
Fuel tank | 0.75 gal
2.8 L |
Engine details ...  | |
Simplicity 3005 Wonder Boy Transmission | |
|---|---|
2-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 41.5 inches
105 cm |
Weight | 268 lbs
121 kg |
Front tire | 4.10/3.50x4 |
Rear tire | 16.00/6.50x8 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Lawn & Garden Power Equipment published in 1976, by Simplicity | |
Lawn & Garden Equipment published in 1978, by Simplicity |
Engine
Engine Detail — 204 cc / 12.5 ci Gasoline
Manufacturer | Briggs & Stratton 130202 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 204 cc
12.5 ci |
Bore/Stroke | 2.56x2.44 inches
65 x 62 mm |
Power | 5 hp
3.7 kW |
Starter type | manual recoil |
electric OptOptional |
Transmission
Transmission — 2 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 2 forward and 1 reverse |
 | |
Dimensions
Simplicity 3005 Wonder Boy Tires | |
|---|---|
Lawn/turf front | 4.10/3.50x4 |
Lawn/turf rear | 16.00/6.50x8 |
Dimensions | |
|---|---|
Wheelbase | 41.5 inches
105 cm |
Length | 58 inches
147 cm |
Width | 28.25 inches
71 cm |
Height (steering wheel) | 39 inches
99 cm |
Height (hood) | 29.25 inches
74 cm |
Shipping weight | 268 lbs
121 kg |
Attachments
26" Mower deck | |
|---|---|
Type | mid-mount Simplicity |
1-blade | |
Cutting width | 26 inches
66 cm |
Overall width | 36.1 inches
91 cm |
Cut height | 1.5 to 3.75 inch
3 to 9 cm |
Photos

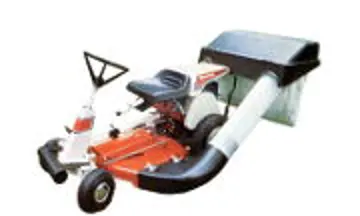

Simplicity 3005 Wonder Boy tractor photo
Simplicity Lawn Tractors Simplicity 3005 Wonder Boy Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity 3005 Wonder Boy.
Converted Equivalents:
Horsepower (HP)5 hp
Kilowatts (kW)3.7 kW
Metric Horsepower (PS / CV)5.1 PS
