Simplicity 305 990554
The Simplicity 305 990554 is a tractor produced by Simplicity Lawn Tractors. The listed engine power is Gasoline (listed): 5 hp / 3.7 kW. Transmission: 2 forward and 1 reverse.
Engine Power
Gasoline (listed): 5 hp / 3.7 kW
Fuel & Capacities
Gasoline
Transmission
2 forward and 1 reverse
Overview
 | 1968 - 1971
Wonder Boy SeriesRiding lawn mower
Wonder Boy Series
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Simplicity (a part of Allis Chalmers) |
Riding lawn mower | |
Built in Port Washington, Wisconsin, USA | |
Original price was $330 in 1969 | |
Simplicity 305 Engine | |
|---|---|
5HP Briggs & Stratton 1-cyl gasoline | |
Engine details ...  |
Simplicity 305 Transmission | |
|---|---|
2-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
References | |
|---|---|
 | |
1970 published by Simplicity | |
We offer Simplicity published in 1971 |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Power | 5 hp
3.7 kW |
Transmission
Transmission — 2 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 2 forward and 1 reverse |
Dimensions
Simplicity 305 Tires |
|---|
Dimensions |
|---|
Attachments
24" Mower deck | |
|---|---|
Type | mid-mount Simplicity |
1-blade | |
Cutting width | 24 inches
60 cm |
Cut height | 2 to 3.125 inch
5 to 7 cm |
Photos

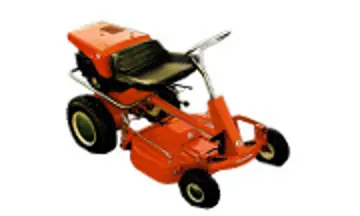

Simplicity 305 990554 tractor photo
Simplicity Lawn Tractors Simplicity 305 990554 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity 305 990554.
Converted Equivalents:
Horsepower (HP)5 hp
Kilowatts (kW)3.7 kW
Metric Horsepower (PS / CV)5.1 PS
