Simplicity 3105

The Simplicity 3105 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 206 cc 12.57 ci engine. The listed engine power is Gasoline (gross): 5 hp / 3.7 kW. Transmission: Tecumseh 740.

Overview

	1980 - 1985 Cavalier 3100 SeriesRiding lawn mower Cavalier 3100 Series Riding lawn mower

Production
Manufacturer	Simplicity
Riding lawn mower
Built in Port Washington, Wisconsin, USA

Simplicity 3105 Engine
5HP Briggs & Stratton 206cc 1-cyl gasoline
Fuel tank	0.5 gal 1.9 L
Engine details ...

Simplicity 3105 Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Front tire	4.10x3.5-4
Rear tire	16x6.50-8
Full dimensions and tires ...

References
Riding Mowers and Garden Tractors published in 1982, by Simplicity

Engine

Engine Detail — 206 cc / 12.57 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	206 cc 12.57 ci
Bore/Stroke	2.56x2.44 inches 65 x 62 mm
Power (gross)	5 hp 3.7 kW
Air cleaner	oiled foam
Rated RPM	3600
Starter type	manual recoil
Oil capacity	1.375 qts 1.3 L

Transmission

Transmission — Tecumseh 740

Transmission	Tecumseh 740
Type	belt-driven gear
Gears	5 forward and 1 reverse

Dimensions

Simplicity 3105 Tires
Lawn/turf front	4.10x3.5-4
Lawn/turf rear	16x6.50-8

Dimensions

Attachments

26" Mower deck
Type	mid-mount Simplicity
	1-blade
Cutting width	26 inches 66 cm
Cut height	1.3 to 4.5 inch 3 to 11 cm
Cut positions	6

Photos

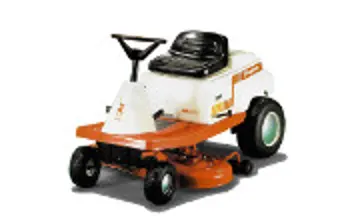

Simplicity 3105
