Simplicity 325

The Simplicity 325 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 204 cc 12.5 ci engine. The listed engine power is Gasoline (listed): 5 hp / 3.7 kW. Transmission: 2 forward and 1 reverse. Operating weight: 278 lbs 126 kg.

Overview

	1973 - 1974 Wonder Boy SeriesRiding lawn mower Wonder Boy Series Riding lawn mower

Production
Manufacturer	Simplicity (a part of Allis Chalmers)
Riding lawn mower
Built in Port Washington, Wisconsin, USA
Original price was $425 in 1974

Variants
990900	manual start
990912	electric start

Simplicity 325 Engine
5HP Briggs & Stratton 204cc 1-cyl gasoline
Fuel tank	0.75 gal 2.8 L
Engine details ...

Simplicity 325 Transmission
2-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	41.5 inches 105 cm
Weight	278 lbs 126 kg
Front tire	4.10/3.50x4
Rear tire	4.80/4.00x8
Full dimensions and tires ...

Engine

Engine Detail — 204 cc / 12.5 ci Gasoline

Manufacturer	Briggs & Stratton 130202
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	204 cc 12.5 ci
Bore/Stroke	2.56x2.44 inches 65 x 62 mm
Power	5 hp 3.7 kW
Starter type	manual recoil
	electric OptOptional

Transmission

Transmission — 2 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	2 forward and 1 reverse

Dimensions

Simplicity 325 Tires
Lawn/turf front	4.10/3.50x4
Lawn/turf rear	4.80/4.00x8

Dimensions
Wheelbase	41.5 inches 105 cm
Length	58 inches 147 cm
Width	28.25 inches 71 cm
Height (steering wheel)	36.25 inches 92 cm
Height (hood)	29.25 inches 74 cm
Shipping weight	278 lbs 126 kg

Attachments

26" Mower deck
Type	mid-mount Simplicity
	1-blade
Cutting width	26 inches 66 cm
Overall width	36.1 inches 91 cm
Cut height	1.5 to 3.75 inch 3 to 9 cm

Photos

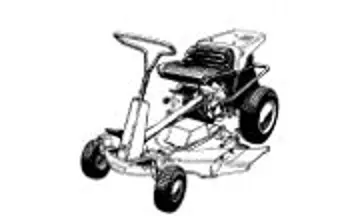

Simplicity 325 tractor photo
