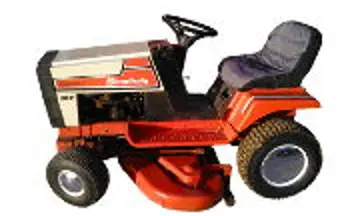

Simplicity 6011 1690347

The Simplicity 6011 1690347 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 399 cc 24.36 ci engine. The listed engine power is Gasoline (gross): 11 hp / 8.2 kW. Transmission: 3 forward and 1 reverse. Operating weight: 590 lbs 267 kg.

Overview

	1978 Broadmoor II SeriesGarden tractor Broadmoor II Series Garden tractor

Production
Manufacturer	Simplicity (a part of Allis Chalmers)
Garden tractor
Built in Port Washington, Wisconsin, USA

Simplicity 6011 Engine
11HP Briggs & Stratton 399cc 1-cyl gasoline
Fuel tank	2.2 gal 8.3 L
Engine details ...

Simplicity 6011 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Mechanical band brakes
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	mechanical

Dimensions & Tires
Wheelbase	45.5 inches 115 cm
Weight	590 lbs 267 kg
Front tire	15x6.00-8
Rear tire	20x8.00-10
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	39

References
Lawn & Garden Equipment published in 1978, by Simplicity

Engine

Engine Detail — 399 cc / 24.36 ci Gasoline

Manufacturer	Briggs & Stratton 252707
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	399 cc 24.36 ci
Bore/Stroke	3.44x2.62 inches 87 x 67 mm
Power (gross)	11 hp 8.2 kW
Starter	electric
Starter volts	12

Transmission

Transmission — 3 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	3 forward and 1 reverse
Oil capacity	1 qts 0.9 L
Oil type	SAE 90

Dimensions

Simplicity 6011 Tires
Lawn/turf front	15x6.00-8
Lawn/turf rear	20x8.00-10

Dimensions
Wheelbase	45.5 inches 115 cm
Length	64.5 inches 163 cm
Width	33.5 inches 85 cm
Height (steering wheel)	42 inches 106 cm
Height (hood)	33 inches 83 cm
Shipping weight	590 lbs 267 kg

Attachments

Attachment overview
36" mid-mount mower deck
42" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

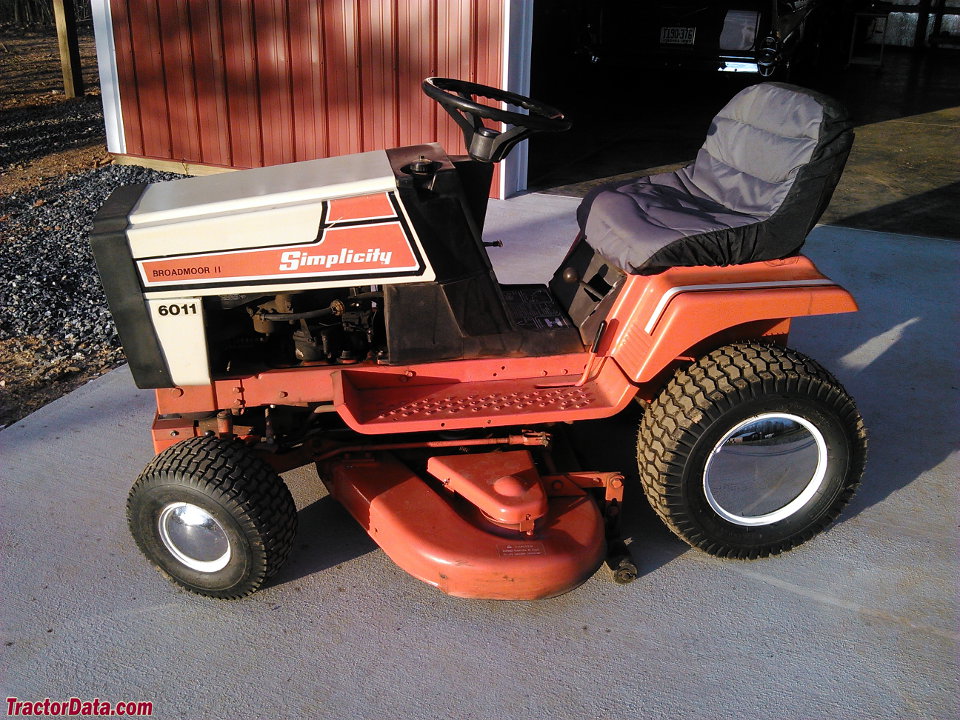

Simplicity 6011 1690347
