Simplicity Regent 4111

The Simplicity Regent 4111 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 399 cc 24.36 ci engine. The listed engine power is Gasoline (listed): 11 hp / 8.2 kW. Transmission: 3 forward and 1 reverse. Operating weight: 506 lbs 229 kg.

Overview

	1976 - 1979 Regent SeriesLawn tractor Regent Series Lawn tractor

Production
Manufacturer	Simplicity (a part of Allis Chalmers)
Lawn tractor
Built in Port Washington, Wisconsin, USA

Simplicity 4111 Engine
11HP Briggs & Stratton 399cc 1-cyl gasoline
Fuel tank	2.2 gal 8.3 L
Engine details ...

Simplicity 4111 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual

Dimensions & Tires
Wheelbase	45.5 inches 115 cm
Weight	506 lbs 229 kg
Front tire	13x5.00-6
Rear tire	18x9.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel magneto
Battery volts	12
Battery AH	39

References
Lawn & Garden Equipment published in 1978, by Simplicity

Engine

Engine Detail — 399 cc / 24.36 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	399 cc 24.36 ci
Bore/Stroke	3.44x2.62 inches 87 x 67 mm
Power	11 hp 8.2 kW
Rated RPM	3400
Starter	electric
Starter volts	12
Oil capacity	1.5 qts 1.4 L

Transmission

Transmission — 3 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	3 forward and 1 reverse
Clutch	mechanical idler pulley
Oil capacity	1.125 qts 1.1 L

Dimensions

Simplicity 4111 Tires
Lawn/turf front	13x5.00-6
Lawn/turf rear	18x9.50-8

Dimensions
Wheelbase	45.5 inches 115 cm
Length	62.75 inches 159 cm
Width	35 inches 88 cm
Height (steering wheel)	39.3 inches 99 cm
Shipping weight	506 lbs 229 kg

Attachments

Attachment overview
36" mid-mount mower deck
Snowblower
Blade

36" Mower deck
Type	mid-mount Simplicity
	2-blade with manual lift
Cutting width	36 inches 91 cm
Overall width	46 inches 116 cm
Cut height	1.5 to 3.5 inch 3 to 8 cm

Photos

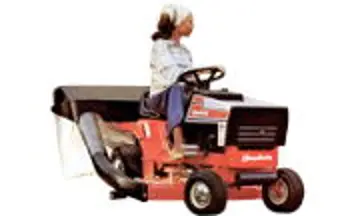

Simplicity Regent 4111
