Simplicity Regent 4211

The Simplicity Regent 4211 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 399 cc 24.36 ci engine. The listed engine power is Gasoline (gross): 11 hp / 8.2 kW. Transmission: 5 forward and 1 reverse. Operating weight: 330 to 526 pounds.

Overview

	1979 - 1986 4200 SeriesLawn tractor 4200 Series Lawn tractor

Production
Manufacturer	Simplicity (a part of Allis Chalmers)
Lawn tractor
Built in Port Washington, Wisconsin, USA

Variants
4211G	gear
4211H	hydrostatic

Simplicity 4211 Engine
11HP Briggs & Stratton 399cc 1-cyl gasoline
Fuel tank	2.2 gal 8.3 L
Engine details ...

Simplicity 4211 Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station. Vinyl weather cab available.

Power Take-off (PTO)
Front PTO	independent
Clutch	manual

Dimensions & Tires
Wheelbase	45.5 inches 115 cm
Weight	330 to 526 pounds
Front tire	13x5.00-8
Rear tire	18x9.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	3
Battery volts	12
Battery AH	39

References
Lawn & Garden Equipment published in 1979, by Simplicity
Riding Mowers and Garden Tractors published in 1982, by Simplicity

Engine

Engine Detail — 399 cc / 24.36 ci Gasoline

Manufacturer	Briggs & Stratton 252707
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	399 cc 24.36 ci
Bore/Stroke	3.44x2.62 inches 87 x 67 mm
Power (gross)	11 hp 8.2 kW
Air cleaner	foam
Rated RPM	3600
Starter	electric
Starter volts	12

Transmission

Transmission — 5 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	5 forward and 1 reverse

Dimensions

Simplicity 4211 Tires
Lawn/turf front	13x5.00-8
Lawn/turf rear	18x9.50-8

Dimensions
Wheelbase	45.5 inches 115 cm
Length	65.25 inches 165 cm
Width	35.25 inches 89 cm
Height (steering wheel)	39 inches 99 cm
Shipping weight	330 lbs*Tractor only 149 kg
	526 lbs*With 36-inch mower deck 238 kg
Clearance (front axle)	9.2 inches 23 cm
Clearance (rear axle)	5.5 inches 13 cm

Attachments

Attachment overview
36" mid-mount mower deck
Snowblower
Blade

36" Mower deck
Type	mid-mount Simplicity
	2-blade with manual lift
Cutting width	36 inches 91 cm
Cut height	1.5 to 3.5 inch 3 to 8 cm

Photos

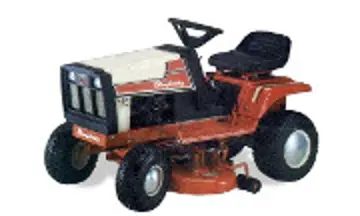

Simplicity Regent 4211

Simplicity Regent 4211
