Simplicity Sovereign 3416H 990871
The Simplicity Sovereign 3416H 990871 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 531 cc 32.4 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: infinite forward and reverse.
Engine Power
Gasoline (gross): 16 hp / 11.9 kW
Fuel & Capacities
3 gal
11.4 L
Transmission
infinite forward and reverse
Overview
 | 1973 - 1974
Sovereign SeriesGarden tractor
Sovereign Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Simplicity |
Garden tractor | |
Built in Port Washington, Wisconsin, USA | |
Variants | |
|---|---|
3416S | shuttle |
3416H | hydrostatic |
Simplicity 3416H Engine | |
|---|---|
16HP Briggs & Stratton 531cc 1-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
Simplicity 3416H Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | mechanial idler pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 48 inches
121 cm |
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Lawn Tractors published in 1973, by Simplicity | |
Tractors and Attachments published in 1974, by Simplicity |
Engine
Engine Detail — 531 cc / 32.4 ci Gasoline
Manufacturer | Briggs & Stratton 325421 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 531 cc
32.4 ci |
Bore/Stroke | 3.5625x3.25 inches
90 x 83 mm |
Power (gross) | 16 hp
11.9 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Simplicity 3416H Tires | |
|---|---|
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x10.50-12 |
Dimensions | |
|---|---|
Wheelbase | 48 inches
121 cm |
Length | 67 inches
170 cm |
Width | 36 inches
91 cm |
Height (steering wheel) | 39.25 inches
99 cm |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
48" mid-mount mower deck | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

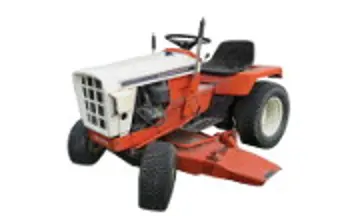

Simplicity Sovereign 3416H 990871
Simplicity Sovereign 3416H 990871
Simplicity Sovereign 3416H 990871
Simplicity Sovereign 3416H operator station and controls.
Simplicity Lawn Tractors Simplicity Sovereign 3416H 990871 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity Sovereign 3416H 990871.
Converted Equivalents:
Horsepower (HP)16 hp
Kilowatts (kW)11.9 kW
Metric Horsepower (PS / CV)16.2 PS
