Simplicity 6116 1690422

The Simplicity 6116 1690422 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 658 cc 40.15 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: 3 forward and 1 reverse. Operating weight: 430 to 671 pounds.

Overview

	1979 - 1981 6100 SeriesGarden tractor 6100 Series Garden tractor

Production
Manufacturer	Simplicity (a part of Allis Chalmers)
Garden tractor
Built in Port Washington, Wisconsin, USA

Simplicity 6116 Engine
16HP Briggs & Stratton 658cc 2-cyl gasoline
Fuel tank	2.2 gal 8.3 L
Engine details ...

Simplicity 6116 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	mechanical

Dimensions & Tires
Wheelbase	48.2 inches 122 cm
Weight	430 to 671 pounds
Front tire	15x6.00-6
Rear tire	20x10.00-10
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	39

References
Lawn & Garden Equipment published in 1979, by Simplicity

Engine

Engine Detail — 658 cc / 40.15 ci Gasoline

Manufacturer	Briggs & Stratton 401707
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft horizontally-opposed
Displacement	658 cc 40.15 ci
Bore/Stroke	3.44x2.16 inches 87 x 55 mm
Power (gross)	16 hp 11.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission — 3 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	3 forward and 1 reverse

Dimensions

Simplicity 6116 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	20x10.00-10

Dimensions
Wheelbase	48.2 inches 122 cm
Length	66.5 inches 168 cm
Width	35.5 inches 90 cm
Height (steering wheel)	40 inches 101 cm
Height (hood)	34.5 inches 87 cm
Shipping weight	430 lbs 195 kg
	671 lbs (with mower) 304 kg

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

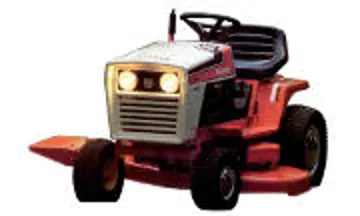

Simplicity 6116 1690422
