Simplicity Broadmoor 16H

The Simplicity Broadmoor 16H is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 480 cc 29.3 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: Hydro-Gear. Operating weight: 130 lbs 58 kg.

Overview

	1994 - 2004 Model year 1994-19971997-20022003-2004 Broadmoor SeriesLawn tractor Broadmoor Series Lawn tractor

Production
Manufacturer	Simplicity
Lawn tractor
Built in Port Washington, Wisconsin, USA
Original price	$4,050 (1994 )
	$4,400 (1997 )

Variants
1616H	similar AGCO model

Simplicity Broadmoor 16H Engine
16HP Vanguard 480cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Simplicity Broadmoor 16H Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric
Mid PTO Type	pulley

Dimensions & Tires
Wheelbase	48 inches 121 cm
Weight	570 lbs 258 kg
Front tire	15x6.00-6
Rear tire	20x8.00-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Operator's Manual Broadmoor Series (1709979) published in 1994
Tractors & Riding Mowers published in 1994, by Simplicity
Tractors & Riding Mowers published in 1995, by Simplicity
Tractors & Riding Mowers published in 1996, by Simplicity
1994 Price List published in 1993, by Simplicity
1996 Dealer Prduct Guide published by Simplicity
1997 Spring Product Guide published in 1996, by Simplicity

Engine

Engine Detail — 480 cc / 29.3 ci Gasoline

Manufacturer	Vanguard 303777
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	480 cc 29.3 ci
Bore/Stroke	2.68x2.60 inches 68 x 66 mm
Power (gross)	16 hp 11.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear

Transmission	Hydro-Gear
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Broadmoor 16H Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	20x8.00-8

Dimensions
Wheelbase	48 inches 121 cm
Length	67 inches 170 cm
Width	35 inches 88 cm
Height (steering wheel)	40 inches 101 cm
Weight	570 lbs*Weight with mower deck. 258 kg

Attachments

Attachment overview
44" mid-mount mower deck
Snowblower
Blade

44" Mower deck
Type	mid-mount Simplicity 1691705
	3-blade with manual lift
Cutting width	44 inches 111 cm
Weight	130 lbs 58 kg
Overall width	56 inches 142 cm
Cut height	1 to 3.6 inch 2 to 9 cm

Photos

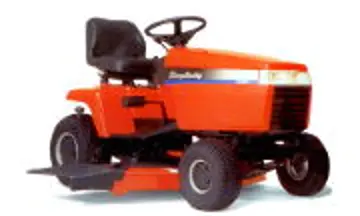

Simplicity Broadmoor 16H tractor photo
