Simplicity Broadmoor 16HV

The Simplicity Broadmoor 16HV is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 530 cc 32.34 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW; Gasoline (gross): 16 hp / 11.9 kW. Transmission: Tuff Torq K57. Operating weight: 690 lbs 312 kg.

Overview

	2003 - 2004 Broadmoor SeriesLawn tractor Broadmoor Series Lawn tractor

Production
Manufacturer	Simplicity
Lawn tractor

Simplicity Broadmoor 16HV Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	52 inches 132 cm
Weight	690 lbs 312 kg
Front tire	15x6.0-6
Rear tire	20x10-10
Full dimensions and tires ...

References
The Way To A Beautiful Lawn published in 2003, by Simplicity
The Way To A Beautiful Lawn published in 2004, by Simplicity
Product Guide 2003 published by Simplicity

Engine

Engine options
16HP Vanguard 480cc 2-cyl gasoline
16HP Honda 530cc 2-cyl gasoline

Engine Detail — 480 cc / 29.3 ci Gasoline

Manufacturer	Vanguard
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
The Briggs Vanguard engine was available in the Simplicity Broadmoor 16VH
Displacement	480 cc 29.3 ci
Bore/Stroke	2.68x2.60 inches 68 x 66 mm
Power (gross)	16 hp 11.9 kW
Starter	electric
Starter volts	12

Simplicity Broadmoor 16HV Engine

Engine Detail — 530 cc / 32.34 ci Gasoline

Manufacturer	Honda GXV530
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
The Honda engine was available in the Simplicity Broadmoor 16HV
Displacement	530 cc 32.34 ci
Bore/Stroke	3.031x2.244 inches 77 x 57 mm
Power (gross)	16 hp 11.9 kW

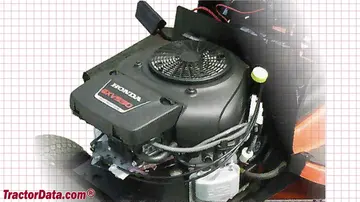

Simplicity Broadmoor 16HV Engine

Transmission

Transmission — Tuff Torq K57

Transmission	Tuff Torq K57
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Broadmoor 16HV Tires
Lawn/turf front	15x6.0-6
Lawn/turf rear	20x10-10

Dimensions
Wheelbase	52 inches 132 cm
Length	70 inches 177 cm
Width	37 inches 93 cm
Height	43 inches 109 cm
Weight	690 lbs 312 kg

Attachments

Attachment overview
38" mid-mount mower deck
40" mid-mount mower deck
44" mid-mount mower deck
Snowblower
Blade

Photos

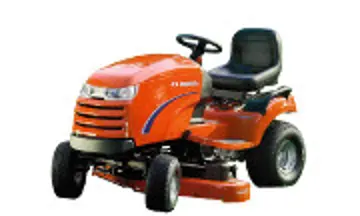

Simplicity Broadmoor 16HV tractor photo
