Simplicity Broadmoor 16VH

The Simplicity Broadmoor 16VH is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW; Gasoline (gross): 16 hp / 11.9 kW. Transmission: Tuff Torq K61. Operating weight: 424 lbs*Weight of tractor only. 192 kg.

Overview

	1997 - 2002 Broadmoor SeriesLawn tractor Broadmoor Series Lawn tractor

Production
Manufacturer	Simplicity
Lawn tractor

Variants
1616H	similar AGCO model

Simplicity Broadmoor 16VH Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric
Mid PTO Type	pulley

Dimensions & Tires
Wheelbase	50.75 inches 128 cm
Weight	424 lbs 192 kg
Front tire	15x6.0-6
Rear tire	20x8.0-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Lawn & Garden Equipment published in 1998, by Simplicity
The way to a beautiful lawn. published in 2000, by Simplicity
Product Guide Fall 1998 published by Simplicity
Product Guide Spring 1999 published by Simplicity
Product Guide 2000 published by Simplicity
Product Guide Fall 2001 published by Simplicity
Operator's Manual Broadmoor published in 1998
Operator's Manual Broadmoor published in 2001
Service & Repair Manual Broadmoor Series (TP 500-2493-00-BM-SMA) published in 2001

Engine

Engine options
16HP Vanguard 480cc 2-cyl gasoline
16HP Briggs & Stratton 655cc 2-cyl gasoline

Engine Detail — 480 cc / 29.3 ci Gasoline

Manufacturer	Vanguard 303777
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	480 cc 29.3 ci
Bore/Stroke	2.68x2.60 inches 68 x 66 mm
Power (gross)	16 hp 11.9 kW
Rated RPM	3400
Starter	electric
Starter volts	12

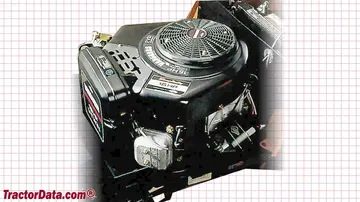

Simplicity Broadmoor 16VH Engine

Engine Detail — 655 cc / 40 ci Gasoline

Manufacturer	Briggs & Stratton 405777
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Beginning in the 1999 model year the Boardmoor 16VH with 44-inch mower deck was fitted with a 655cc engine.
Displacement	655 cc 40 ci
Bore/Stroke	2.97x2.89 inches 75 x 73 mm
Power (gross)	16 hp 11.9 kW
Rated RPM	3400
Starter	electric
Starter volts	12

Transmission

Transmission — Tuff Torq K61

Transmission	Tuff Torq K61
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Broadmoor 16VH Tires
Lawn/turf front	15x6.0-6
Lawn/turf rear	20x8.0-8

Dimensions
Wheelbase	50.75 inches 128 cm
Length	70.25 inches 178 cm
Width	35 inches 88 cm
Height (steering wheel)	40 inches 101 cm
Height (hood)	34 inches 86 cm
Weight	424 lbs*Weight of tractor only. 192 kg

Attachments

Attachment overview
38" mid-mount mower deck
44" mid-mount mower deck
Snowblower
Blade

Photos

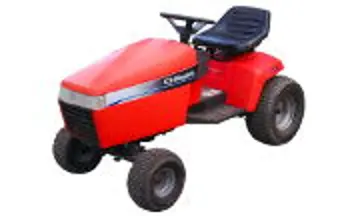

Simplicity Broadmoor 16VH tractor photo
