Simplicity Champion 25/50

The Simplicity Champion 25/50 is a tractor produced by Simplicity Lawn Tractors. The listed engine power is Engine 1 (listed): 25 hp / 18.6 kW. Transmission: Hydro-Gear.

Engine Power
Engine 1 (listed): 25 hp / 18.6 kW
Fuel & Capacities
5.5 gal 20.8 L
Transmission
Hydro-Gear

Overview

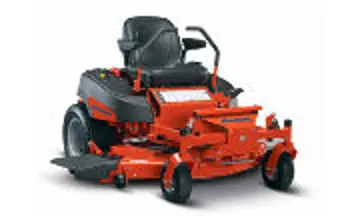

Simplicity Champion 25/50 tractor photo
2014 - 2015 Champion SeriesZero-turn mower Champion Series Zero-turn mower
Production
Manufacturer
Simplicity (a part of Briggs & Stratton)
Zero-turn mower
Simplicity Champion 25/50 Engine
25HP Briggs & Stratton 2-cyl
Fuel tank
5.5 gal 20.8 L
Engine details ...
Simplicity Champion 25/50 Transmission
hydrostatic
Transmission details ...
Mechanical
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Clutch
electric
Dimensions & Tires
Front tire
11x4
Rear tire
20x8
Full dimensions and tires ...
Electrical
Ground
negative
Battery CCA
350
Battery volts
12

Engine

Manufacturer
Briggs & Stratton
Configuration
2-cylinder
Power
25 hp 18.6 kW
Starter
electric
Starter volts
12

Transmission

Transmission — Hydro-Gear

Transmission
Hydro-Gear
Type
hydrostatic
Gears
infinite forward and reverse
Champion 25/50 hydrostatic speeds

Dimensions

Simplicity Champion 25/50 Tires
Lawn/turf front
11x4
Lawn/turf rear
20x8
Dimensions
Length
78 inches 198 cm
Height
62 inches 157 cm

Attachments

50" Mower deck
Type
mid-mount Simplicity
3-blade with manual lift
Cutting width
50 inches 127 cm
Cut height
1.5 to 4.5 inch 3 to 11 cm
Cut positions
7

Photos

Simplicity Champion 25/50 tractor photo

Simplicity Champion 25/50 tractor photo

Simplicity Lawn Tractors Simplicity Champion 25/50 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity Champion 25/50.

Converted Equivalents:

Horsepower (HP)25 hp
Kilowatts (kW)18.6 kW
Metric Horsepower (PS / CV)25.3 PS
