Simplicity Broadmoor 20/46

The Simplicity Broadmoor 20/46 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 568 cc 34.7 ci engine. The listed engine power is Gasoline (gross): 20 hp / 14.9 kW. Transmission: Tuff Torq K57. Operating weight: 607 lbs 275 kg.

Overview

	2010 - 2012 Broadmoor SeriesLawn tractor Broadmoor Series Lawn tractor

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Lawn tractor
Original price was $4,099 in 2012

Variants
2620	similar Massey Ferguson model

Simplicity Broadmoor 20/46 Engine
20HP Vanguard 568cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Simplicity Broadmoor 20/46 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station with 15-inch adjustable seat.

Power Take-off (PTO)
Front PTO	independent
Front PTO Type	electric

Dimensions & Tires
Wheelbase	53 inches 134 cm
Weight	607 lbs 275 kg
Front tire	15x6.0-6
Rear tire	22x10.0-10
Full dimensions and tires ...

Engine

Engine Detail — 568 cc / 34.7 ci Gasoline

Manufacturer	Vanguard 358777
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	568 cc 34.7 ci
Bore/Stroke	2.83x2.76 inches 72 x 70 mm
Power (gross)	20 hp 14.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Tuff Torq K57

Transmission	Tuff Torq K57
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Broadmoor 20/46 Tires
Lawn/turf front	15x6.0-6
Lawn/turf rear	22x10.0-10

Dimensions
Wheelbase	53 inches 134 cm
Length	71 inches 180 cm
Height	43 inches 109 cm
Weight	607 lbs 275 kg
Front axle	Cast-iron
Rear axle	0.75 inch diameter 19 mm

Attachments

46" Mower deck
Type	mid-mount Simplicity
	3-blade with manual lift
Cutting width	46 inches 116 cm
Overall width	56 inches 142 cm
Cut height	1 to 4 inch 2 to 10 cm
Cut positions	infinite

Photos

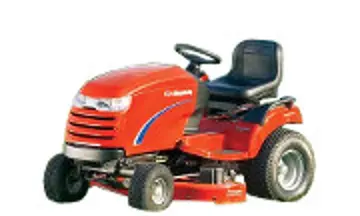

Simplicity Broadmoor 20/46 tractor photo
